LSI/CSI LS7560F-TS

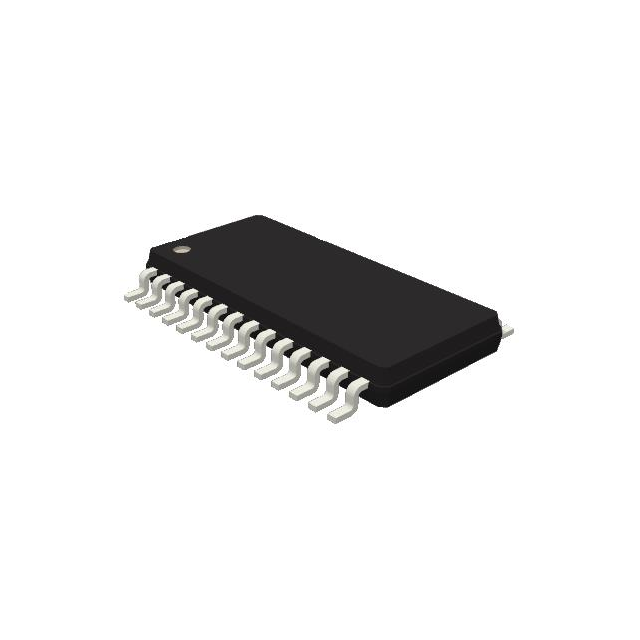

Images are for reference only
Manufacturer
Manufacturer No
LS7560F-TS
Availability
In Stock
Package
28-TSSOP (0.173", 4.40mm Width)
Packaging
Tube
Description
BLDC MOTOR CONTROLLER
Detailed Description
Multiphase Motor Driver Power MOSFET PWM 28-TSSOP
Datasheet
Payment
Delivery
Series
-
Function
Controller - Commutation, Direction Management
Interface
PWM
Packaging
Tube
Technology
Power MOSFET
Applications
General Purpose
Manufacturer
LSI/CSI
Mounting Type
Surface Mount
Package / Case
28-TSSOP (0.173", 4.40mm Width)
Voltage - Load
-
Step Resolution
-
Current - Output
30mA
Voltage - Supply
5.7V ~ 6.3V
Base Product Number
LS7560
Motor Type - AC, DC
Brushless DC (BLDC)
Motor Type - Stepper
Multiphase
Output Configuration
Half Bridge (3)
Operating Temperature
-25°C ~ 85°C (TA)
Supplier Device Package
28-TSSOP
| Attribute | Value |
|---|---|
| Series | - |
| Function | Controller - Commutation, Direction Management |
| Interface | PWM |
| Packaging | Tube |
| Technology | Power MOSFET |
| Applications | General Purpose |
| Manufacturer | LSI/CSI |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Voltage - Load | - |
| Step Resolution | - |
| Current - Output | 30mA |
| Voltage - Supply | 5.7V ~ 6.3V |
| Base Product Number | LS7560 |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Output Configuration | Half Bridge (3) |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Supplier Device Package | 28-TSSOP |
