Step1: Product
Littelfuse Inc. SP1011-04UTG

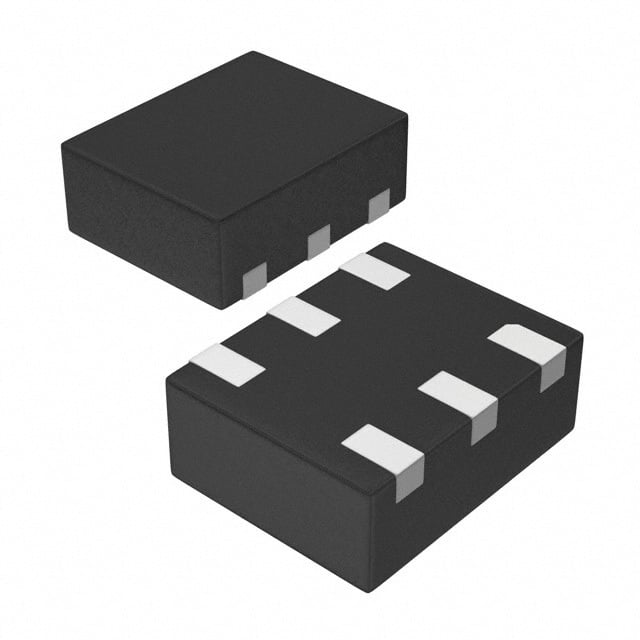

Images are for reference only
Manufacturer
Manufacturer No
SP1011-04UTG
Quantity
3
Availability
In Stock
Package
6-XDFN
Packaging
Tape & Reel (TR)
Description
TVS DIODE 6VWM 10.2VC 6UDFN
Detailed Description
10.2V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 6-µDFN (1.25x1.0)
Datasheet
Payment
Delivery
Mfr
Littelfuse Inc.
Type
Zener
Series
SP1011, SPA®
Packaging
Tape & Reel (TR)
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
6-XDFN
Power - Peak Pulse
-
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
No
Capacitance @ Frequency
-
Supplier Device Package
6-µDFN (1.25x1.0)
Unidirectional Channels
4
Voltage - Breakdown (Min)
7V
Voltage - Clamping (Max) @ Ipp
10.2V
Voltage - Reverse Standoff (Typ)
6V (Max)
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SP1011, SPA® |
| Packaging | Tape & Reel (TR) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 6-XDFN |
| Power - Peak Pulse | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Capacitance @ Frequency | - |
| Supplier Device Package | 6-µDFN (1.25x1.0) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 10.2V |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
