Step1: Product

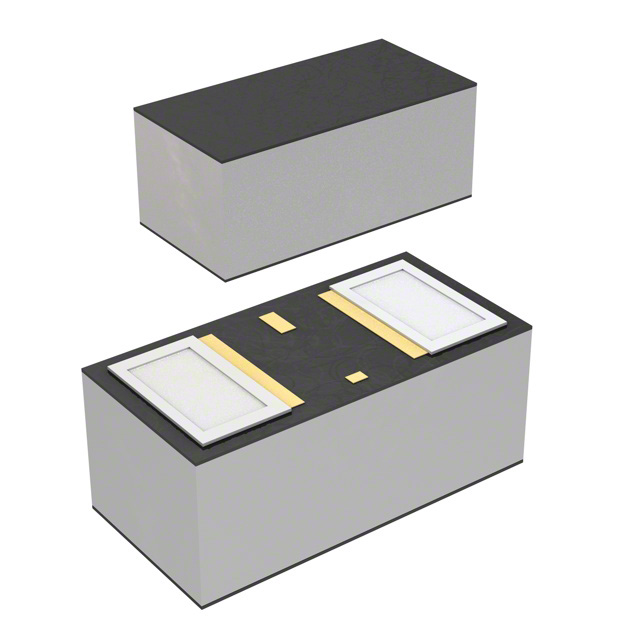

Littelfuse Inc. SP1005-01WTG
Images are for reference only
Manufacturer
Manufacturer No
SP1005-01WTG
Quantity
8,540
Availability
In Stock
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 6VWM 1 0201 FLIPCHIP
Detailed Description
15.6V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount 0201 FlipChip
Datasheet
Payment
Delivery
Mfr
Littelfuse Inc.
Type
Zener
Series
SP1005, SPA®
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
-
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
-
Supplier Device Package
0201 FlipChip
Voltage - Breakdown (Min)
8.5V (Typ)
Voltage - Clamping (Max) @ Ipp
15.6V
Voltage - Reverse Standoff (Typ)
6V (Max)
Current - Peak Pulse (10/1000µs)
10A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SP1005, SPA® |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | - |
| Supplier Device Package | 0201 FlipChip |
| Voltage - Breakdown (Min) | 8.5V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 15.6V |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
