Step1: Product

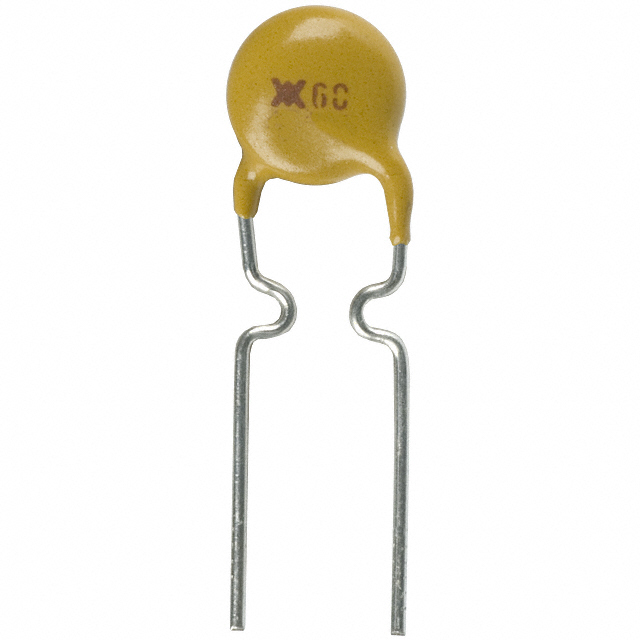

Littelfuse Inc. RXEF017
Images are for reference only
Manufacturer
Manufacturer No
RXEF017
Quantity
315
Availability
In Stock
Package
Radial, Disc
Packaging
Bag
Description
PTC RESET FUSE 60V 170MA RADIAL
Detailed Description
Polymeric PTC Resettable Fuse 60V 170 mA Ih Through Hole Radial, Disc
Datasheet
Payment
Delivery
Type
Polymeric
Series
PolySwitch®, RXEF
Ratings
-
Packaging
Bag
Lead Spacing
0.199" (5.05mm)
Manufacturer
Littelfuse Inc.
Time to Trip
3 s
Current - Max
40 A
Mounting Type
Through Hole
Voltage - Max
60V
Package / Case
Radial, Disc
Approval Agency
CQC, CSA, TUV, UL
Thickness (Max)
-
Size / Dimension
0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Current - Trip (It)
340 mA
Height - Seated (Max)
0.500" (12.70mm)
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
170 mA
Resistance - Initial (Ri) (Min)
3.3 Ohms
Resistance - Post Trip (R1) (Max)
8 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | PolySwitch®, RXEF |
| Ratings | - |
| Packaging | Bag |
| Lead Spacing | 0.199" (5.05mm) |
| Manufacturer | Littelfuse Inc. |
| Time to Trip | 3 s |
| Current - Max | 40 A |
| Mounting Type | Through Hole |
| Voltage - Max | 60V |
| Package / Case | Radial, Disc |
| Approval Agency | CQC, CSA, TUV, UL |
| Thickness (Max) | - |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Current - Trip (It) | 340 mA |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 170 mA |
| Resistance - Initial (Ri) (Min) | 3.3 Ohms |
| Resistance - Post Trip (R1) (Max) | 8 Ohms |
