Step1: Product

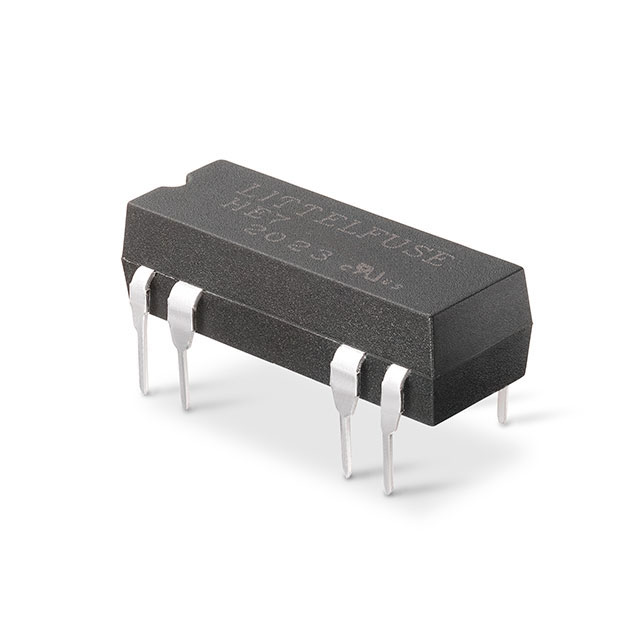

Littelfuse Inc. HE721C0530
Images are for reference only
Manufacturer
Manufacturer No
HE721C0530
Packaging
Tube
Description
RELAY REED SPDT 250MA 5V
Detailed Description
Reed Relay SPDT (1 Form C) 5VDC Coil Through Hole
Datasheet
Payment
Delivery
Series
HE700
Features
Diode, Electrostatic Shield
Coil Type
Non Latching
Packaging
Tube
Seal Rating
-
Coil Current
25 mA
Coil Voltage
5VDC
Contact Form
SPDT (1 Form C)
Manufacturer
Littelfuse Inc.
Operate Time
3 ms
Release Time
3 ms
Mounting Type
Through Hole
Coil Resistance
200 Ohms
Contact Material
-
Switching Voltage
175VDC - Max
Termination Style
PC Pin
Must Operate Voltage
3.75 VDC
Must Release Voltage
0.5 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
250 mA
| Attribute | Value |
|---|---|
| Series | HE700 |
| Features | Diode, Electrostatic Shield |
| Coil Type | Non Latching |
| Packaging | Tube |
| Seal Rating | - |
| Coil Current | 25 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | Littelfuse Inc. |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 200 Ohms |
| Contact Material | - |
| Switching Voltage | 175VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 250 mA |
