Step1: Product

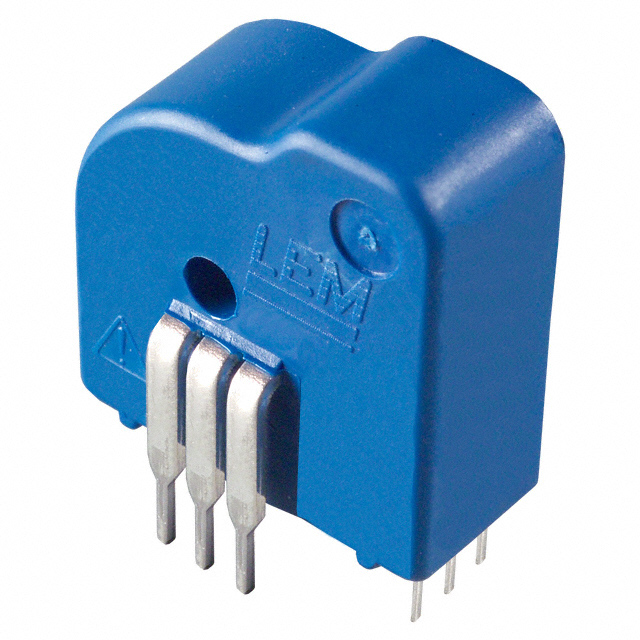

LEM USA Inc. LTS 25-NP/SP7
Images are for reference only
Manufacturer
Manufacturer No
LTS 25-NP/SP7
Package
Module, Single Pass Through
Packaging
Tube
Description
CURRENT SENSOR HE/CL 25A
Detailed Description
Current Sensor 25A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Datasheet
Payment
Delivery
Mfr
LEM USA Inc.
Output
Ratiometric, Voltage
Series
LTS
Accuracy
±0.2%
Frequency
DC ~ 200kHz
Linearity
±0.1%
Packaging
Tube
Sensitivity
25mV/A
Sensor Type
Hall Effect, Closed Loop
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
400ns
Package / Case
Module, Single Pass Through
Voltage - Supply
4.75V ~ 5.25V
Current - Sensing
25A
Number of Channels
1
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
28mA (Typ)
| Attribute | Value |
|---|---|
| Mfr | LEM USA Inc. |
| Output | Ratiometric, Voltage |
| Series | LTS |
| Accuracy | ±0.2% |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.1% |
| Packaging | Tube |
| Sensitivity | 25mV/A |
| Sensor Type | Hall Effect, Closed Loop |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 400ns |
| Package / Case | Module, Single Pass Through |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Sensing | 25A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 28mA (Typ) |
