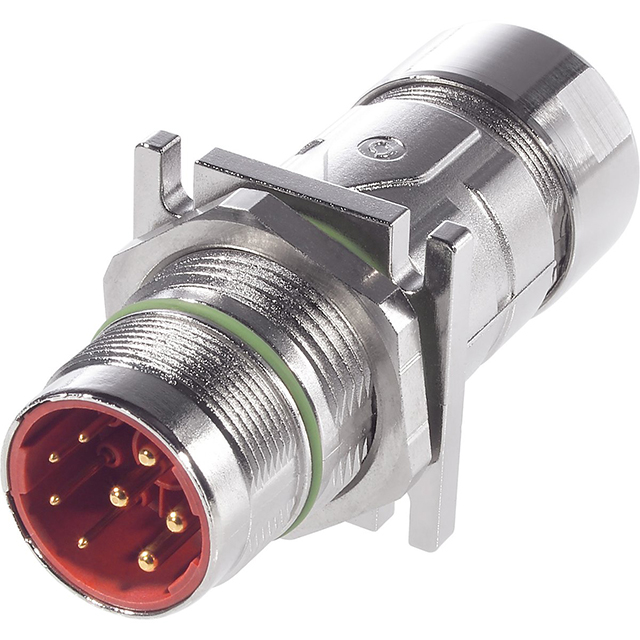

LAPP 76144000
Mfr
LAPP
Color
Silver
Series
EPIC®
Features
Backshell
Packaging
Bulk
Shielding
Shielded
Orientation
N (Normal)
Termination
Crimp
Applications
Automotive, Industrial
Shell Finish
Nickel
Cable Opening
0.295" ~ 0.610" (7.50mm ~ 15.50mm)
Mounting Type
Panel Mount
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Zinc Die Cast
Voltage Rating
600V
Insert Material
Polyamide (PA), Nylon; Polybutylene Terephthalate (PBT)
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
8 (7 + PE)
Shell Size - Insert
M23
Current Rating (Amps)
7A, 26A
Operating Temperature
-25°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | LAPP |
| Color | Silver |
| Series | EPIC® |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Automotive, Industrial |
| Shell Finish | Nickel |
| Cable Opening | 0.295" ~ 0.610" (7.50mm ~ 15.50mm) |
| Mounting Type | Panel Mount |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 600V |
| Insert Material | Polyamide (PA), Nylon; Polybutylene Terephthalate (PBT) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 8 (7 + PE) |
| Shell Size - Insert | M23 |
| Current Rating (Amps) | 7A, 26A |
| Operating Temperature | -25°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
