Step1: Product

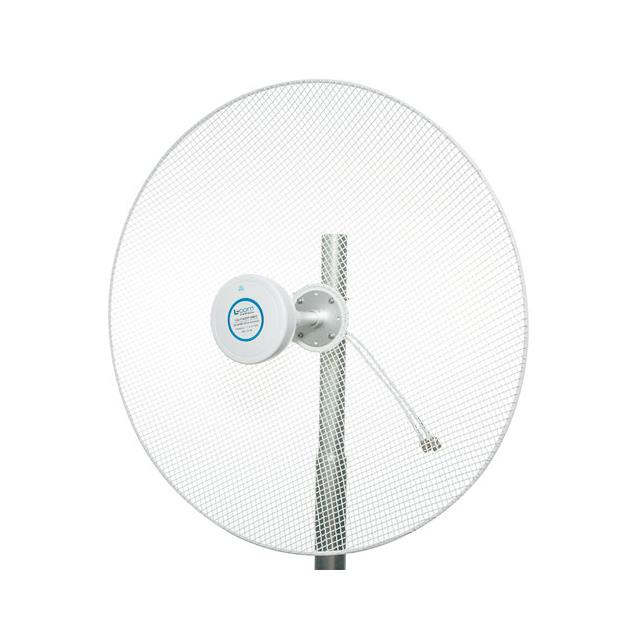

L-com HG-1742DP-20EG-NF
Images are for reference only
Manufacturer
Manufacturer No
HG-1742DP-20EG-NF
Packaging
Bag
Description
1.7-4.2GHZ 20DBI 2FT MIMO GRID A
Detailed Description
RF ANTENNA 5G, 802.11b/g/n, CBRS, LTE, Wi-Fi Dish N Type Female (2) Bracket Mount
Datasheet
Payment
Delivery
Gain
20dBi, 22dBi
VSWR
2.5
Grade
-
Series
HG
Features
Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Packaging
Bag
Power - Max
50 W
Return Loss
-
Termination
N Type Female (2)
Antenna Type
Dish
Applications
5G, 802.11b/g/n, CBRS, LTE, Wi-Fi
Height (Max)
9.900" (251.46mm)
Manufacturer
L-com
Mounting Type
Bracket Mount
Qualification
-
Frequency Group
Wide Band
Frequency Range
1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
Number of Bands
2
Ingress Protection
-
RF Family/Standard
Cellular, WiFi
Frequency (Center/Band)
2.2GHz, 3.75GHz
| Attribute | Value |
|---|---|
| Gain | 20dBi, 22dBi |
| VSWR | 2.5 |
| Grade | - |
| Series | HG |
| Features | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m |
| Packaging | Bag |
| Power - Max | 50 W |
| Return Loss | - |
| Termination | N Type Female (2) |
| Antenna Type | Dish |
| Applications | 5G, 802.11b/g/n, CBRS, LTE, Wi-Fi |
| Height (Max) | 9.900" (251.46mm) |
| Manufacturer | L-com |
| Mounting Type | Bracket Mount |
| Qualification | - |
| Frequency Group | Wide Band |
| Frequency Range | 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz |
| Number of Bands | 2 |
| Ingress Protection | - |
| RF Family/Standard | Cellular, WiFi |
| Frequency (Center/Band) | 2.2GHz, 3.75GHz |
