Step1: Product

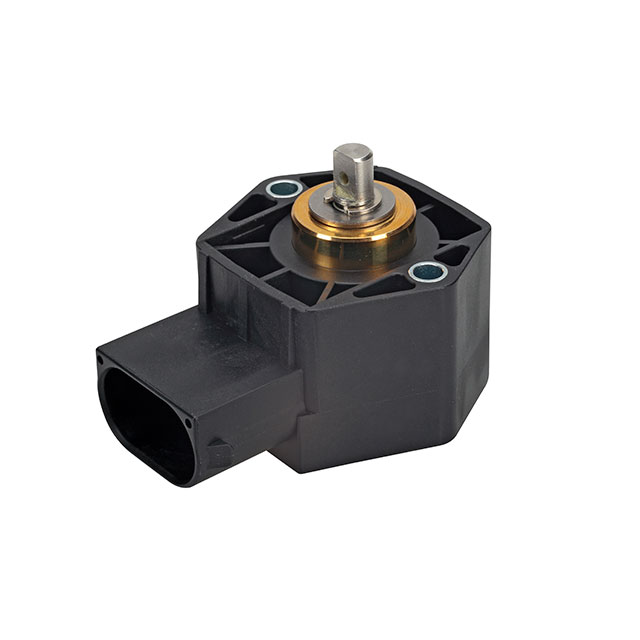

KYOCERA AVX 9168000010
Images are for reference only
Manufacturer
Manufacturer No
9168000010
Package
Module
Packaging
Bulk
Description
HALL-ANGLE-SENSOR 91680/ONE CHAN
Detailed Description
Hall Effect Sensor Angle Slotted Shaft Connector
Datasheet
Payment
Delivery
Output
Analog Voltage
Series
-
Linearity
-
Packaging
Bulk
Technology
Hall Effect
Linear Range
-
Manufacturer
KYOCERA AVX
Actuator Type
Slotted Shaft
For Measuring
Angle
Mounting Type
Chassis Mount
Output Signal
-
Package / Case
Module
Voltage - Supply
4.75V ~ 5.25V
Termination Style
Connector
DigiKey Programmable
-
Resistance Tolerance
-
Operating Temperature
-40°C ~ 120°C
Supplier Device Package
-
Rotation Angle - Electrical, Mechanical
0° ~ 45°
| Attribute | Value |
|---|---|
| Output | Analog Voltage |
| Series | - |
| Linearity | - |
| Packaging | Bulk |
| Technology | Hall Effect |
| Linear Range | - |
| Manufacturer | KYOCERA AVX |
| Actuator Type | Slotted Shaft |
| For Measuring | Angle |
| Mounting Type | Chassis Mount |
| Output Signal | - |
| Package / Case | Module |
| Voltage - Supply | 4.75V ~ 5.25V |
| Termination Style | Connector |
| DigiKey Programmable | - |
| Resistance Tolerance | - |
| Operating Temperature | -40°C ~ 120°C |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 45° |
