KYOCERA AVX 209257012101016
Images are for reference only
Manufacturer
Manufacturer No
209257012101016
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description

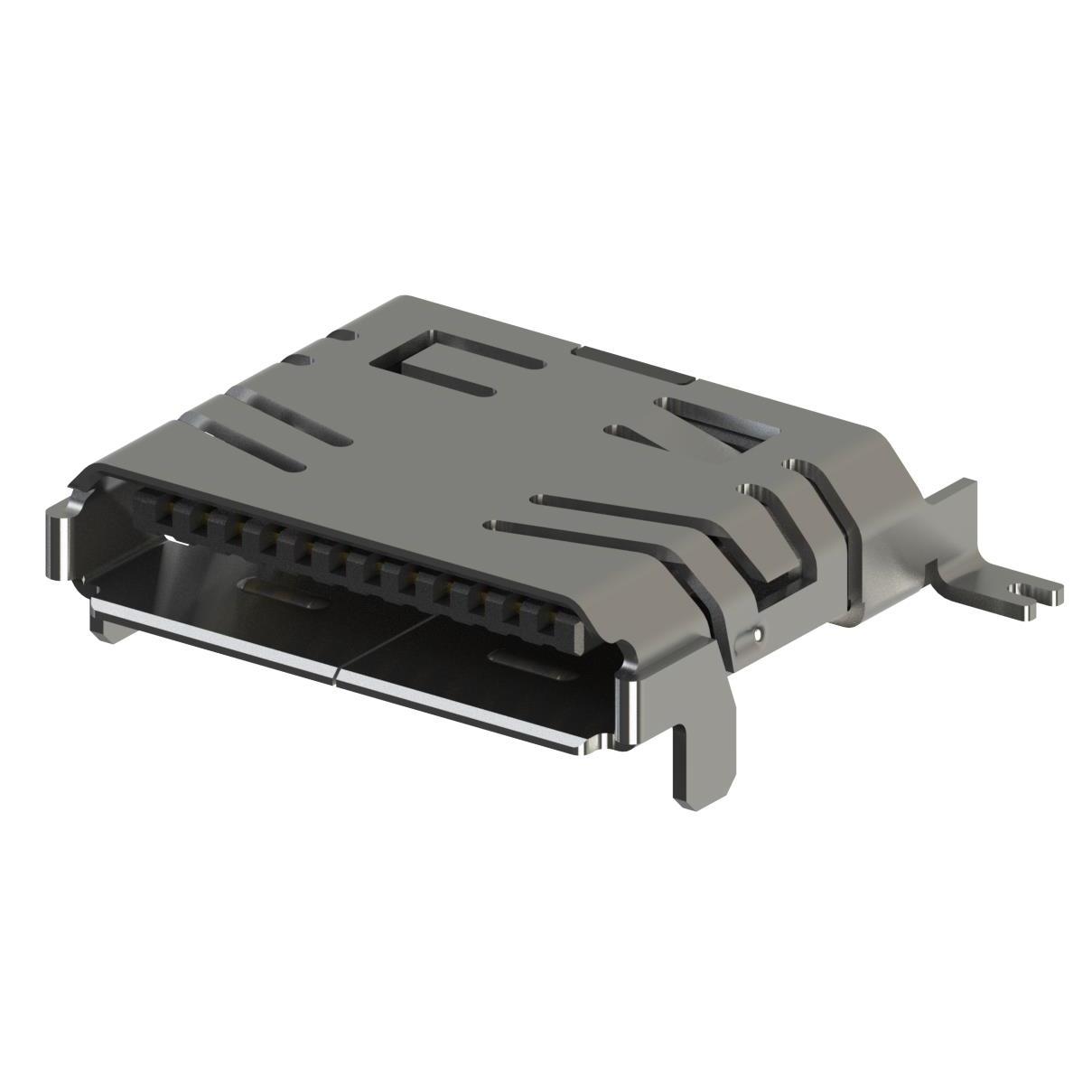

CONN RCPT 12P 0.05 GOLD SMD R/A
Detailed Description
12 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
Datasheet
Payment
Delivery
Mfr
KYOCERA AVX
Style
Board to Cable/Wire
Series
9257
Features
Board Guide, Shielded, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Applications
General Purpose, Industrial, Medical, Telecommunications
Contact Type
Female Blade Socket
Contact Shape
-
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
50VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.079" (2.00mm)
Ingress Protection
-
Base Product Number
209257
Insulation Material
Plastic
Number of Positions
12
Row Spacing - Mating
-
Contact Finish - Post
-
Contact Length - Post
-
Current Rating (Amps)
0.5A per Contact
Operating Temperature
-55°C ~ 85°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | KYOCERA AVX |
| Style | Board to Cable/Wire |
| Series | 9257 |
| Features | Board Guide, Shielded, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact Type | Female Blade Socket |
| Contact Shape | - |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 50VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.079" (2.00mm) |
| Ingress Protection | - |
| Base Product Number | 209257 |
| Insulation Material | Plastic |
| Number of Positions | 12 |
| Row Spacing - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | - |
| Current Rating (Amps) | 0.5A per Contact |
| Operating Temperature | -55°C ~ 85°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
