Step1: Product

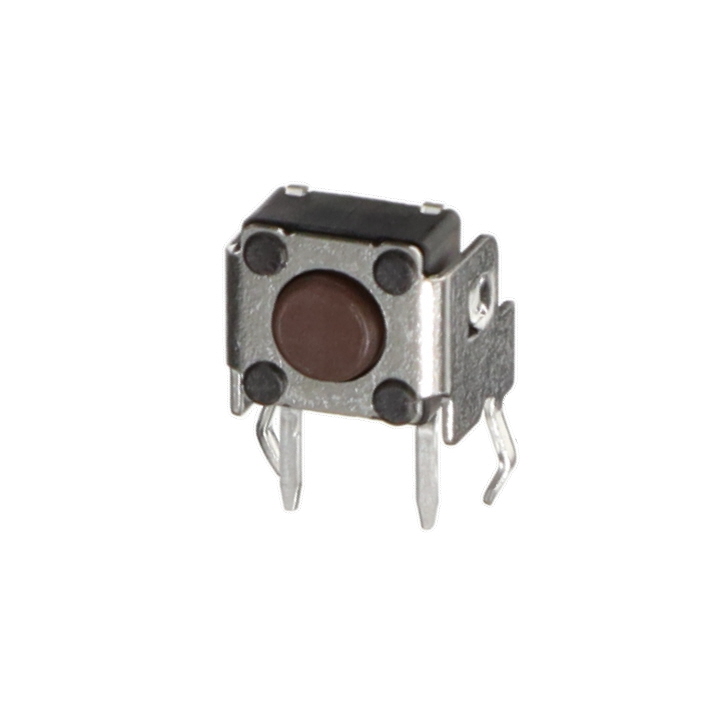

Knitter-Switch TS 61 N-RA
Images are for reference only
Manufacturer
Manufacturer No
TS 61 N-RA
Packaging
Bag
Description
SWITCH TACT 3.15MM BROWN
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
Payment
Delivery
Mfr
Knitter-Switch
Series
TS
Circuit
SPST-NO
Outline
7.40mm x 6.55mm
Features
-
Packaging
Bag
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
0.25mm
Mechanical Life
-
Operating Force
160gf
Switch Function
Off-Mom
Actuator Material
Thermoplastic
Termination Style
PC Pin
Ingress Protection
-
Base Product Number
TS 61
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Illumination Type, Color
-
Actuator Length, Right Angle
3.50mm
Illumination Voltage (Nominal)
-
Actuator Height off PCB, Vertical
-
| Attribute | Value |
|---|---|
| Mfr | Knitter-Switch |
| Series | TS |
| Circuit | SPST-NO |
| Outline | 7.40mm x 6.55mm |
| Features | - |
| Packaging | Bag |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 0.25mm |
| Mechanical Life | - |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Thermoplastic |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Base Product Number | TS 61 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | 3.50mm |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | - |
