Step1: Product

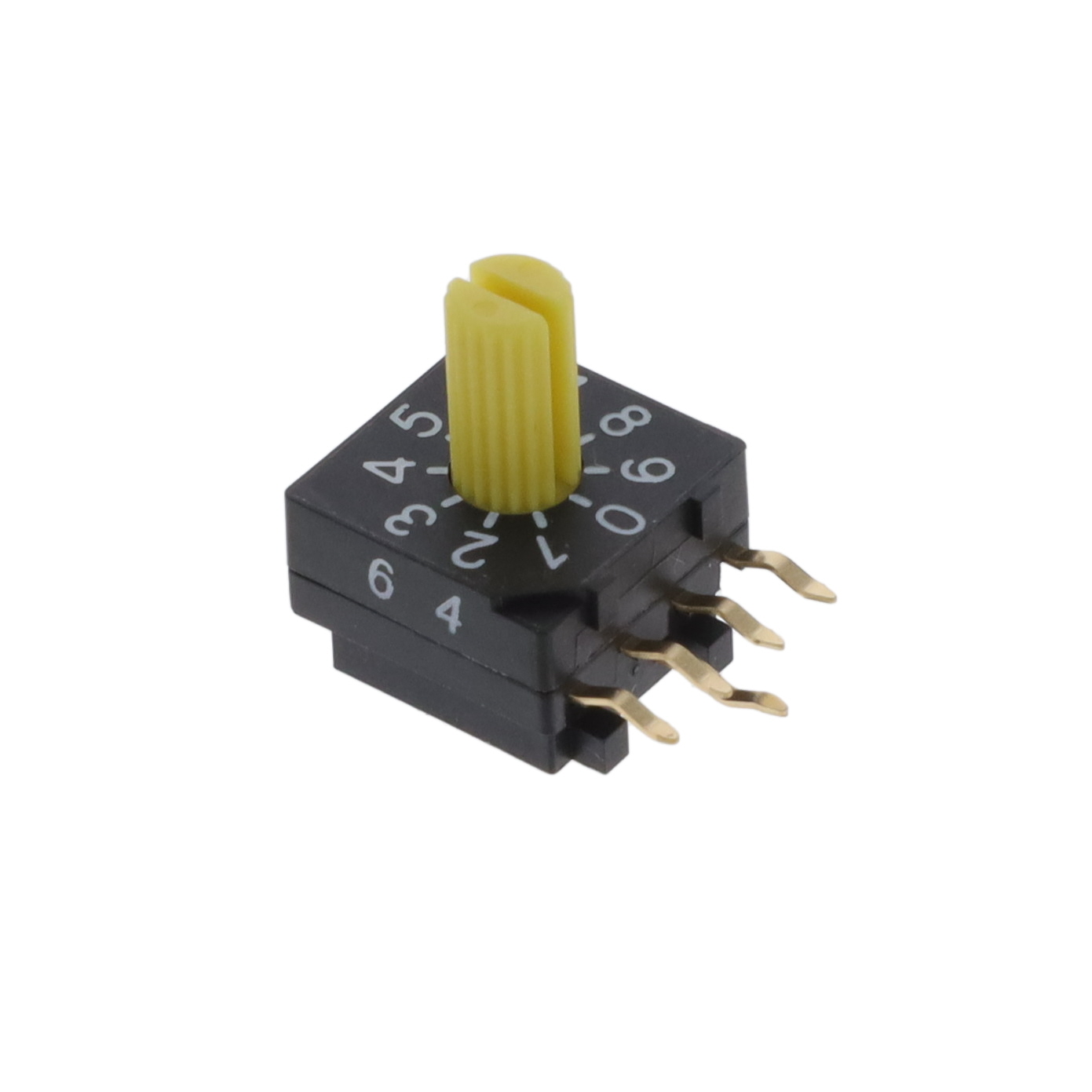

Knitter-Switch DRR 4010
Images are for reference only
Manufacturer
Manufacturer No
DRR 4010
Packaging
Tube
Description
SWITCH ROTARY BCD
Detailed Description
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary with Shaft Actuator 30mA 15VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.394" (10.00mm)
Series
DRR
Circuit
BCD
Features
-
Washable
Yes
Packaging
Tube
Manufacturer
Knitter-Switch
Actuator Type
Rotary with Shaft
Body Material
Thermoplastic
Mounting Type
Through Hole, Right Angle
Actuator Level
Raised
Contact Finish
Gold
Voltage Rating
15VDC
Electrical Life
-
Mechanical Life
20,000 Cycles
Contact Material
Phosphor Bronze
Termination Style
PC Pin
Height Above Board
0.409" (10.39mm)
Number of Positions
10
Current Rating (Amps)
30mA
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.394" (10.00mm) |
| Series | DRR |
| Circuit | BCD |
| Features | - |
| Washable | Yes |
| Packaging | Tube |
| Manufacturer | Knitter-Switch |
| Actuator Type | Rotary with Shaft |
| Body Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Actuator Level | Raised |
| Contact Finish | Gold |
| Voltage Rating | 15VDC |
| Electrical Life | - |
| Mechanical Life | 20,000 Cycles |
| Contact Material | Phosphor Bronze |
| Termination Style | PC Pin |
| Height Above Board | 0.409" (10.39mm) |
| Number of Positions | 10 |
| Current Rating (Amps) | 30mA |
| Operating Temperature | -25°C ~ 70°C |
