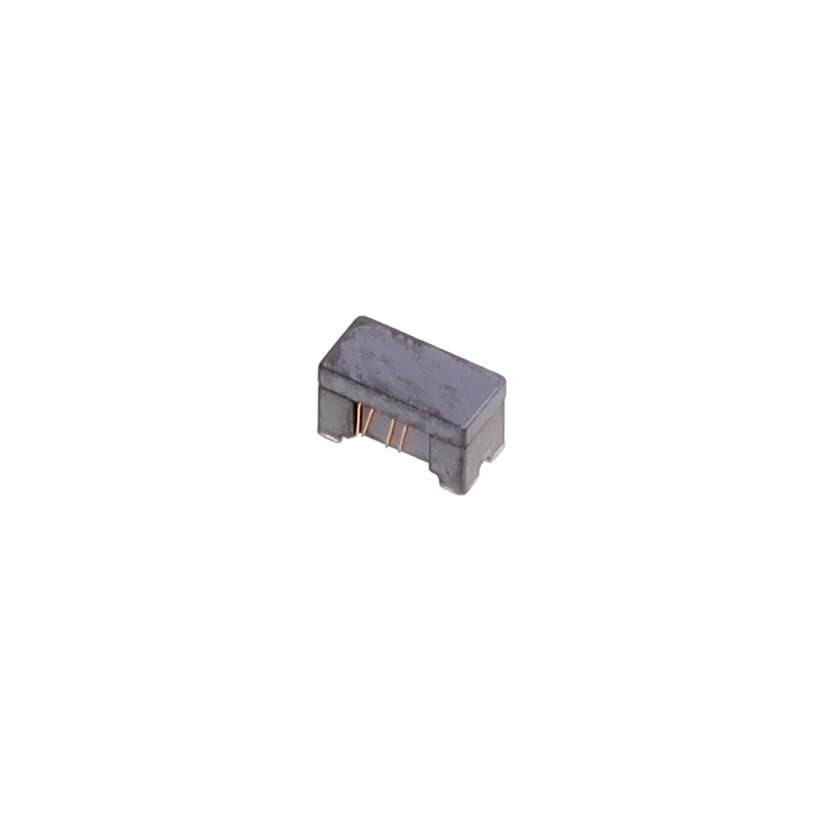

knitter-inductive ICSC679405L4SHRT22
Images are for reference only
Manufacturer
Manufacturer No
ICSC679405L4SHRT22
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CMC SMD, 2 LINES, 67OHM@100MHZ,
Detailed Description
2 Line Common Mode Choke Surface Mount 67 Ohms 400mA DCR 250mOhm
Datasheet
Payment
Delivery
Series
ICSC
Ratings
-
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Signal Line
Height (Max)
0.083" (2.10mm)
Manufacturer
knitter-inductive
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Approval Agency
-
Number of Lines
2
Size / Dimension
0.126" L x 0.063" W (3.20mm x 1.60mm)
Voltage Rating - AC
-
Voltage Rating - DC
50V
Current Rating (Max)
400mA
Impedance @ Frequency
67 Ohms @ 100 MHz
Operating Temperature
-25°C ~ 85°C
DC Resistance (DCR) (Max)
250mOhm
| Attribute | Value |
|---|---|
| Series | ICSC |
| Ratings | - |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Signal Line |
| Height (Max) | 0.083" (2.10mm) |
| Manufacturer | knitter-inductive |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Approval Agency | - |
| Number of Lines | 2 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 400mA |
| Impedance @ Frequency | 67 Ohms @ 100 MHz |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) (Max) | 250mOhm |
