Step1: Product

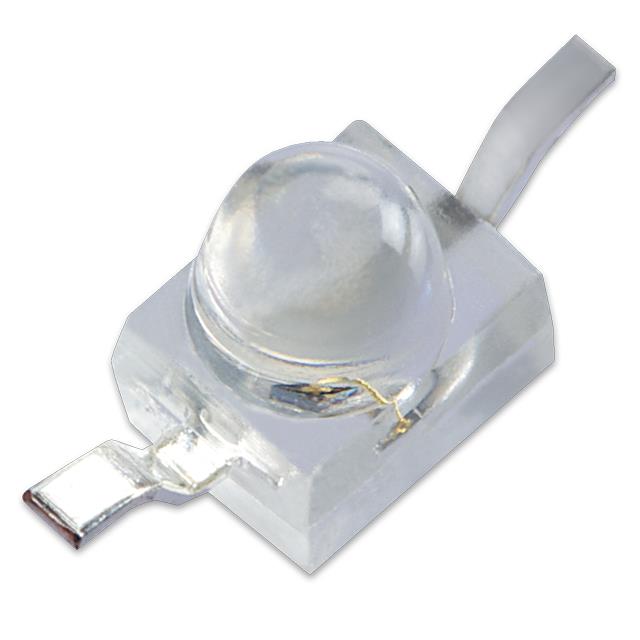

Kingbright AM2520P3C09
Images are for reference only
Manufacturer
Manufacturer No
AM2520P3C09
Availability
In Stock
Package
2-SMD, Z-Bend
Packaging
Bulk
Description
2.5X2.0MM PHOTOTRANSISTOR SMD LE
Detailed Description
Phototransistors 940nm Top View 2-SMD, Z-Bend
Datasheet
Payment
Delivery
Series
-
Packaging
Bulk
Wavelength
940nm
Orientation
Top View
Power - Max
100 mW
Manufacturer
Kingbright
Mounting Type
Surface Mount
Viewing Angle
20°
Package / Case
2-SMD, Z-Bend
Operating Temperature
-40°C ~ 85°C
Current - Dark (Id) (Max)
100 nA
Current - Collector (Ic) (Max)
1.5 mA
Voltage - Collector Emitter Breakdown (Max)
800 mV
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Bulk |
| Wavelength | 940nm |
| Orientation | Top View |
| Power - Max | 100 mW |
| Manufacturer | Kingbright |
| Mounting Type | Surface Mount |
| Viewing Angle | 20° |
| Package / Case | 2-SMD, Z-Bend |
| Operating Temperature | -40°C ~ 85°C |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 1.5 mA |
| Voltage - Collector Emitter Breakdown (Max) | 800 mV |
