Step1: Product

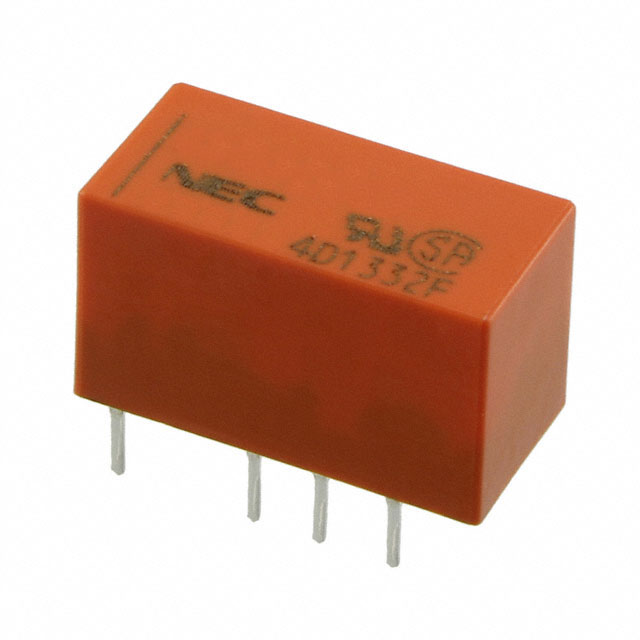

KEMET EC2-24NU
Grade
-
Series
EC2
Features
-
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Seal Rating
-
Coil Current
8.3 mA
Coil Voltage
24VDC
Contact Form
DPDT (2 Form C)
Manufacturer
KEMET
Operate Time
2 ms
Release Time
1 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
CSA, TUV, UL
Coil Insulation
-
Coil Resistance
2.88 kOhms
Contact Material
Silver Alloy, Gold Alloy
Switching Voltage
250VAC, 220VDC - Max
Termination Style
PC Pin
Base Product Number
EC2-24
Load - Max Switching
125VA, 60W
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
2 A
| Attribute | Value |
|---|---|
| Grade | - |
| Series | EC2 |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 8.3 mA |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Manufacturer | KEMET |
| Operate Time | 2 ms |
| Release Time | 1 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | CSA, TUV, UL |
| Coil Insulation | - |
| Coil Resistance | 2.88 kOhms |
| Contact Material | Silver Alloy, Gold Alloy |
| Switching Voltage | 250VAC, 220VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | EC2-24 |
| Load - Max Switching | 125VA, 60W |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 2 A |
