Step1: Product

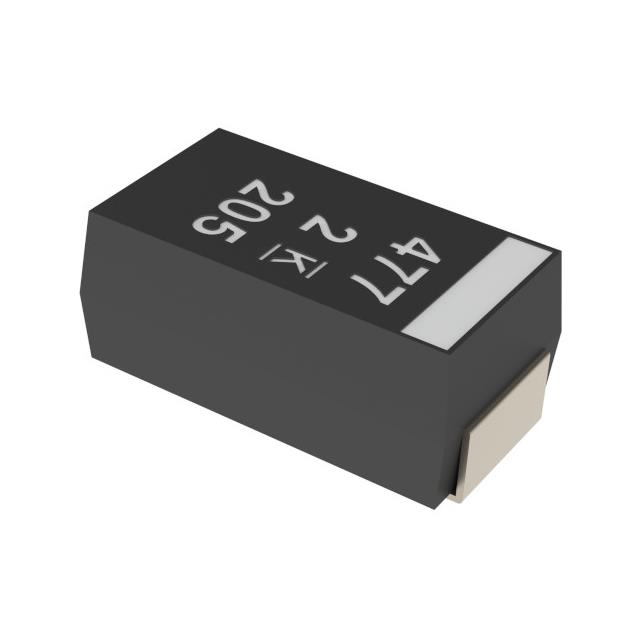

KEMET A700D156M035ATE040
Images are for reference only
Manufacturer
Manufacturer No
A700D156M035ATE040
Quantity
1
Availability
In Stock
Package
2917 (7343 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CAP ALUM POLY 15UF 20% 35V SMD
Detailed Description
15 µF 35 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 2000 Hrs @ 125°C
Datasheet
Payment
Delivery
Type
Polymer
Series
AO-Cap A700
Ratings
-
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Tolerance
±20%
Capacitance
15 µF
Applications
General Purpose
Lead Spacing
-
Manufacturer
KEMET
Mounting Type
Surface Mount
Package / Case
2917 (7343 Metric)
Voltage - Rated
35 V
Lifetime @ Temp.
2000 Hrs @ 125°C
Size / Dimension
0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)
0.122" (3.10mm)
Operating Temperature
-55°C ~ 125°C
Surface Mount Land Size
0.287" L x 0.169" W (7.30mm x 4.30mm)
Ripple Current @ High Frequency
2.5 A @ 100 kHz
ESR (Equivalent Series Resistance)
40mOhm
| Attribute | Value |
|---|---|
| Type | Polymer |
| Series | AO-Cap A700 |
| Ratings | - |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 15 µF |
| Applications | General Purpose |
| Lead Spacing | - |
| Manufacturer | KEMET |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Voltage - Rated | 35 V |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 40mOhm |
