Step1: Product

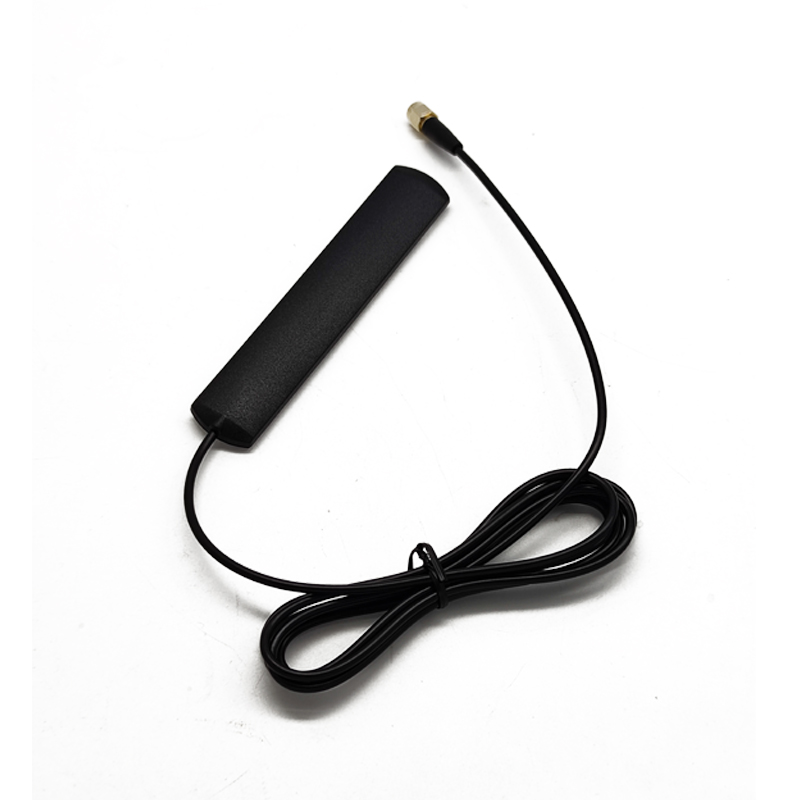

JC Antenna JCG017NRL
Images are for reference only
Manufacturer
Manufacturer No
JCG017NRL
Packaging
Bag
Description
5G NR ANTENNA
Detailed Description
RF ANTENNA 5G Flat Bar SMA Male Adhesive
Datasheet
Payment
Delivery
Gain
2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi
VSWR
3
Grade
-
Series
-
Features
Cable - 3m
Packaging
Bag
Return Loss
-
Termination
SMA Male
Antenna Type
Flat Bar
Applications
5G
Height (Max)
0.228" (5.80mm)
Manufacturer
JC Antenna
Mounting Type
Adhesive
Qualification
-
Frequency Group
Wide Band
Frequency Range
451MHz ~ 468MHz, 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 4.9GHz
Number of Bands
6
Ingress Protection
-
RF Family/Standard
Cellular
Frequency (Center/Band)
459.5MHz, 788.5MHz, 1.472GHz, 2.2GHz, 3.55GHz, 4.65GHz
| Attribute | Value |
|---|---|
| Gain | 2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi |
| VSWR | 3 |
| Grade | - |
| Series | - |
| Features | Cable - 3m |
| Packaging | Bag |
| Return Loss | - |
| Termination | SMA Male |
| Antenna Type | Flat Bar |
| Applications | 5G |
| Height (Max) | 0.228" (5.80mm) |
| Manufacturer | JC Antenna |
| Mounting Type | Adhesive |
| Qualification | - |
| Frequency Group | Wide Band |
| Frequency Range | 451MHz ~ 468MHz, 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 4.9GHz |
| Number of Bands | 6 |
| Ingress Protection | - |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 459.5MHz, 788.5MHz, 1.472GHz, 2.2GHz, 3.55GHz, 4.65GHz |
