Step1: Product

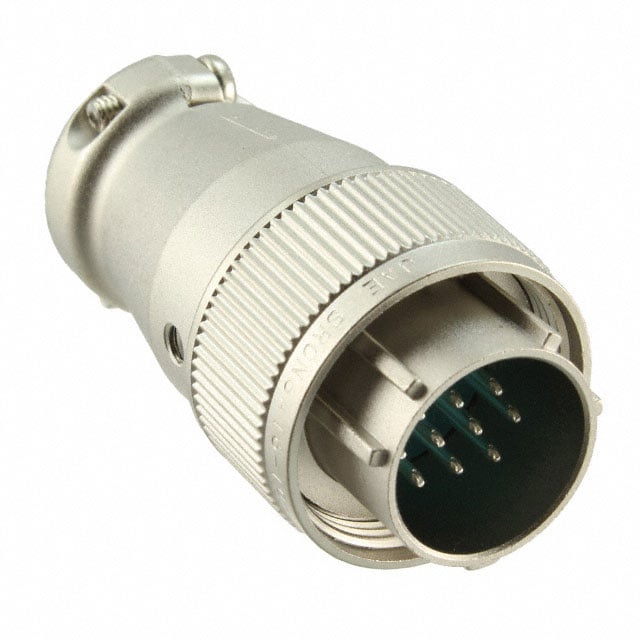

JAE Electronics SRCN6A16-10P
Images are for reference only
Manufacturer
Manufacturer No
SRCN6A16-10P
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG MALE 10P SOLDER CUP
Detailed Description
10 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
JAE Electronics
Color
Silver
Series
SRCN
Features
Backshell, Cable Clamp, Coupling Nut
Packaging
Bulk
Shielding
-
Orientation
N (Normal)
Termination
Solder Cup
Applications
Communication Systems, Telecommunications, Test Equipment & Measurement
Shell Finish
Nickel
Cable Opening
0.453" (11.51mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
250VAC, 350VDC
Insert Material
Plastic
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
-
Base Product Number
SRCN6A16
Number of Positions
10
Shell Size - Insert
16-10
Current Rating (Amps)
5A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Aluminum Alloy, Nickel
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Color | Silver |
| Series | SRCN |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Packaging | Bulk |
| Shielding | - |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
| Shell Finish | Nickel |
| Cable Opening | 0.453" (11.51mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 250VAC, 350VDC |
| Insert Material | Plastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | - |
| Base Product Number | SRCN6A16 |
| Number of Positions | 10 |
| Shell Size - Insert | 16-10 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
