Step1: Product

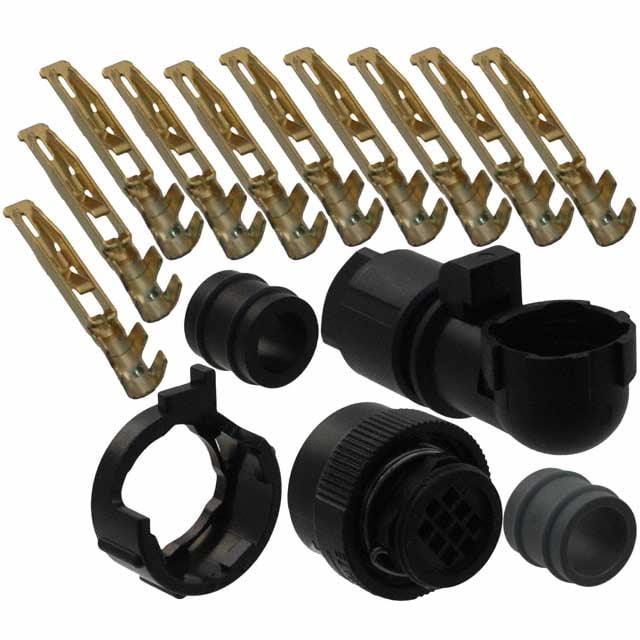

JAE Electronics JN2FS10SLK-R
Images are for reference only
Manufacturer
Manufacturer No
JN2FS10SLK-R
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG FMALE 10POS GOLD CRIMP
Detailed Description
10 Position Circular Connector Plug, Female Sockets Crimp
Datasheet
Payment
Delivery
Mfr
JAE Electronics
Color
Black
Series
JN2
Features
Backshell, Coupling Nut, Rotatable
Packaging
Bulk
Shielding
-
Orientation
N (Normal)
Termination
Crimp
Applications
-
Shell Finish
-
Cable Opening
-
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Female Sockets
Fastening Type
Push-Twist
Shell Material
-
Voltage Rating
200VAC
Insert Material
-
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
-
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
JN2FS10S
Number of Positions
10
Shell Size - Insert
S
Current Rating (Amps)
3A
Operating Temperature
-20°C ~ 100°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Synthetic Resin
Material Flammability Rating
-
Contact Finish Thickness - Mating
3.90µin (0.099µm)
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Color | Black |
| Series | JN2 |
| Features | Backshell, Coupling Nut, Rotatable |
| Packaging | Bulk |
| Shielding | - |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | - |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Push-Twist |
| Shell Material | - |
| Voltage Rating | 200VAC |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | JN2FS10S |
| Number of Positions | 10 |
| Shell Size - Insert | S |
| Current Rating (Amps) | 3A |
| Operating Temperature | -20°C ~ 100°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Synthetic Resin |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
