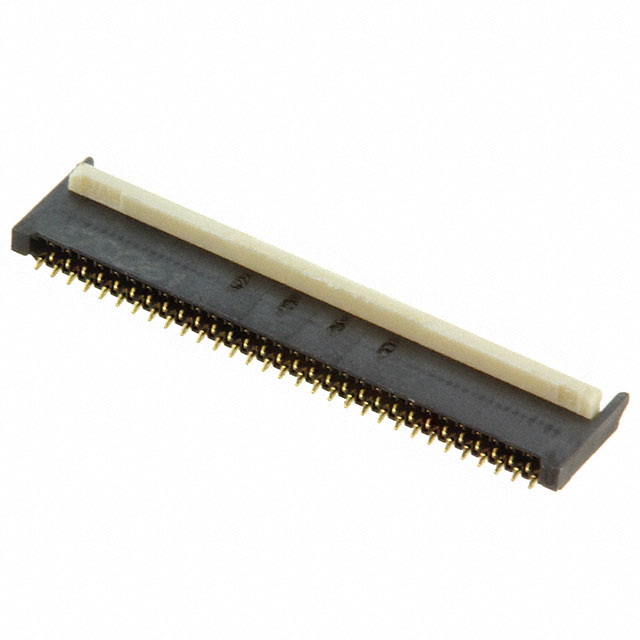

JAE Electronics FR02C061JA1-R5000
Images are for reference only
Manufacturer
Manufacturer No
FR02C061JA1-R5000
Quantity
30
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC 61POS 0.2MM R/A
Detailed Description
61 Position FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.008" (0.20mm)
Series
FR02
Features
Low Insertion Force (LIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
JAE Electronics
Housing Color
Black
Mating Cycles
-
Mounting Type
Surface Mount, Right Angle
Actuator Color
Natural
Cable End Type
Tabbed or Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock, Backlock
Contact Material
Phosphor Bronze
Housing Material
Plastic
Actuator Material
Plastic
FFC, FCB Thickness
0.20mm
Height Above Board
0.032" (0.81mm)
Base Product Number
FR02C061
Number of Positions
61
Current Rating (Amps)
0.25A per Contact
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Top and Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Pitch | 0.008" (0.20mm) |
| Series | FR02 |
| Features | Low Insertion Force (LIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Housing Color | Black |
| Mating Cycles | - |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Natural |
| Cable End Type | Tabbed or Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock, Backlock |
| Contact Material | Phosphor Bronze |
| Housing Material | Plastic |
| Actuator Material | Plastic |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.032" (0.81mm) |
| Base Product Number | FR02C061 |
| Number of Positions | 61 |
| Current Rating (Amps) | 0.25A per Contact |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | - |
