Step1: Product

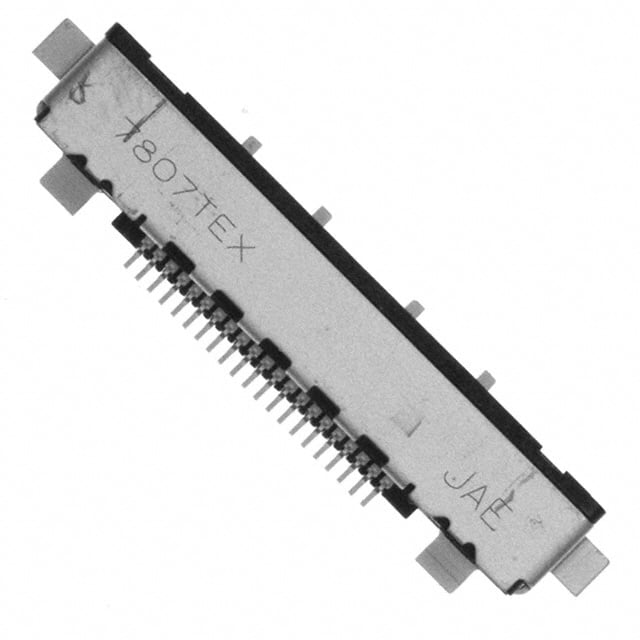

JAE Electronics FI-RE21S-HF-R1500
Images are for reference only
Manufacturer
Manufacturer No
FI-RE21S-HF-R1500
Quantity
46
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCPT 21P 0.02 GOLD SMD R/A
Detailed Description
21 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold
Datasheet
Payment
Delivery
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
FI-R
Features
Shielded, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Applications
General Purpose, Medical
Contact Type
Female Blade Socket
Contact Shape
-
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.020" (0.50mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
-
Insulation Height
0.148" (3.75mm)
Ingress Protection
-
Base Product Number
FI-RE21S
Insulation Material
Plastic
Number of Positions
21
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
0.8A per Contact
Operating Temperature
-40°C ~ 80°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | FI-R |
| Features | Shielded, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Applications | General Purpose, Medical |
| Contact Type | Female Blade Socket |
| Contact Shape | - |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.020" (0.50mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | - |
| Insulation Height | 0.148" (3.75mm) |
| Ingress Protection | - |
| Base Product Number | FI-RE21S |
| Insulation Material | Plastic |
| Number of Positions | 21 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 0.8A per Contact |
| Operating Temperature | -40°C ~ 80°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
