ITG Electronics, Inc. AHA41245A-70L

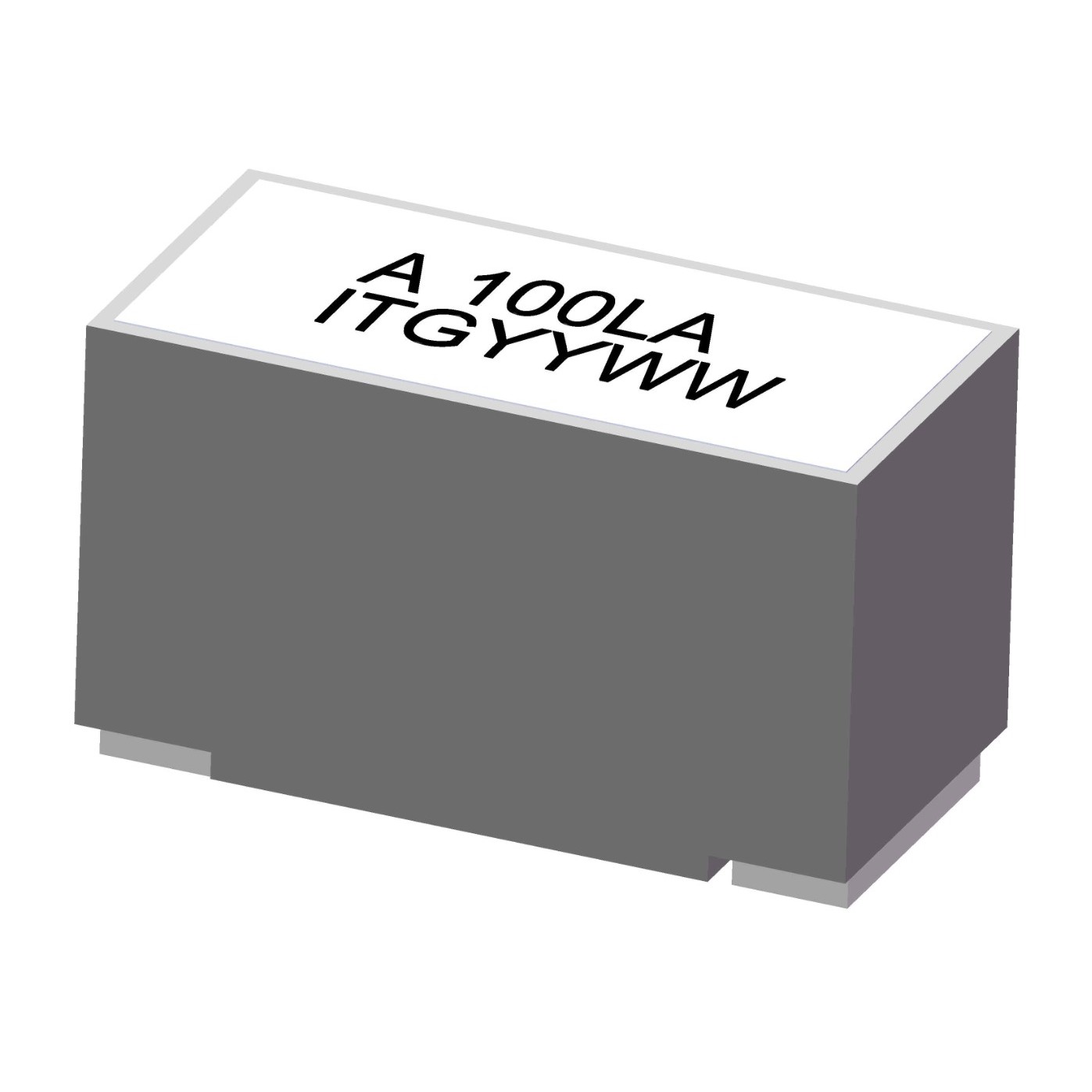

Images are for reference only

Manufacturer

ITG Electronics, Inc.

Manufacturer No

AHA41245A-70L

Packaging

Tape & Reel (TR)

Description

TLVR 70.0nH 0.50mOhm 100.0A

Detailed Description

Shielded 2 Coil Inductor Array Inductance - Connected in Series 70 nH Inductance - Connected in Parallel 0.5mOhm DC Resistance (DCR) - Parallel 45 A

Datasheet

AHA41245A-70L

Payment

Delivery

Height

0.236" (6.00mm)

Series

AHA41245A

Packaging

Tape & Reel (TR)

Shielding

Shielded

Tolerance

±15%

Manufacturer

ITG Electronics, Inc.

Mounting Type

Surface Mount

Number of Coils

2

Size / Dimension

0.402" L x 0.197" W (10.20mm x 5.00mm)

Operating Temperature

-55°C ~ 130°C

Current Rating - Parallel

45 A

Current Saturation - Parallel

100 A

DC Resistance (DCR) - Parallel

0.5mOhm

Inductance - Connected In Parallel

70 nH

Attribute	Value
Height	0.236" (6.00mm)
Series	AHA41245A
Packaging	Tape & Reel (TR)
Shielding	Shielded
Tolerance	±15%
Manufacturer	ITG Electronics, Inc.
Mounting Type	Surface Mount
Number of Coils	2
Size / Dimension	0.402" L x 0.197" W (10.20mm x 5.00mm)
Operating Temperature	-55°C ~ 130°C
Current Rating - Parallel	45 A
Current Saturation - Parallel	100 A
DC Resistance (DCR) - Parallel	0.5mOhm
Inductance - Connected In Parallel	70 nH
