Step1: Product
Inventchip IV2Q06060D7Z

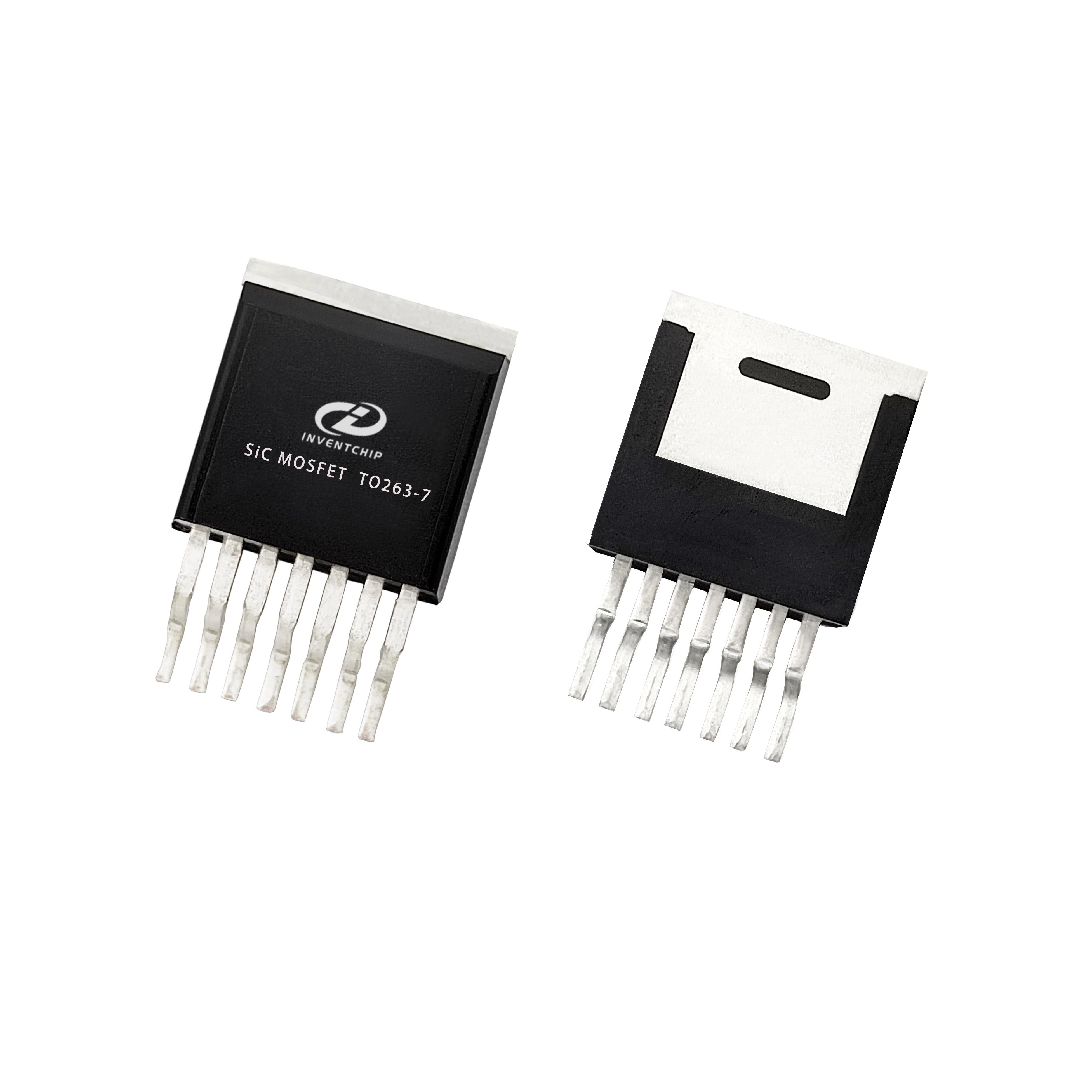

Images are for reference only
Manufacturer
Manufacturer No
IV2Q06060D7Z
Package
TO-263-8, D2PAK (7 Leads + Tab)
Packaging
Strip
Description
GEN 2, SIC MOSFET, 650V 60MOHM,
Detailed Description
N-Channel 650 V 50A (Tc) 174W (Tc) Through Hole TO-263-7
Datasheet
Payment
Delivery
Mfr
Inventchip
Series
-
FET Type
N-Channel
Packaging
Strip
Vgs (Max)
+20V, -5V
Technology
SiCFET (Silicon Carbide)
FET Feature
-
Mounting Type
Through Hole
Package / Case
TO-263-8, D2PAK (7 Leads + Tab)
Vgs(th) (Max) @ Id
4.5V @ 7.5mA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
78mOhm @ 15A, 18V
Power Dissipation (Max)
174W (Tc)
Supplier Device Package
TO-263-7
Gate Charge (Qg) (Max) @ Vgs
94.7 nC @ 18 V
Drain to Source Voltage (Vdss)
650 V
Input Capacitance (Ciss) (Max) @ Vds
2000 pF @ 400 V
Drive Voltage (Max Rds On, Min Rds On)
18V
Current - Continuous Drain (Id) @ 25°C
50A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Inventchip |
| Series | - |
| FET Type | N-Channel |
| Packaging | Strip |
| Vgs (Max) | +20V, -5V |
| Technology | SiCFET (Silicon Carbide) |
| FET Feature | - |
| Mounting Type | Through Hole |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab) |
| Vgs(th) (Max) @ Id | 4.5V @ 7.5mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 15A, 18V |
| Power Dissipation (Max) | 174W (Tc) |
| Supplier Device Package | TO-263-7 |
| Gate Charge (Qg) (Max) @ Vgs | 94.7 nC @ 18 V |
| Drain to Source Voltage (Vdss) | 650 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2000 pF @ 400 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
