International Rectifier IRLR2705TRPBF

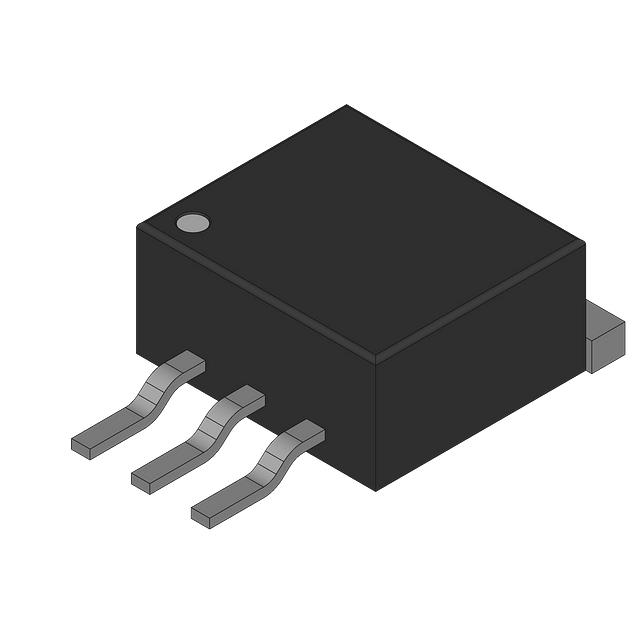

Images are for reference only
Manufacturer
Manufacturer No
IRLR2705TRPBF
Quantity
159
Availability
In Stock
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Bulk
Description
IRLR2705 - 12V-300V N-CHANNEL PO
Detailed Description
N-Channel 55 V 28A (Tc) 68W (Tc) Surface Mount DPAK
Datasheet
Payment
Delivery
Mfr
International Rectifier
Series
HEXFET®
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
±16V
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Vgs(th) (Max) @ Id
2V @ 250µA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
40mOhm @ 17A, 10V
Power Dissipation (Max)
68W (Tc)
Supplier Device Package
DPAK
Gate Charge (Qg) (Max) @ Vgs
25 nC @ 5 V
Drain to Source Voltage (Vdss)
55 V
Input Capacitance (Ciss) (Max) @ Vds
880 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
4V, 10V
Current - Continuous Drain (Id) @ 25°C
28A (Tc)
| Attribute | Value |
|---|---|
| Mfr | International Rectifier |
| Series | HEXFET® |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | ±16V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 17A, 10V |
| Power Dissipation (Max) | 68W (Tc) |
| Supplier Device Package | DPAK |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 5 V |
| Drain to Source Voltage (Vdss) | 55 V |
| Input Capacitance (Ciss) (Max) @ Vds | 880 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Tc) |
