Step1: Product
International Rectifier IRFH4257DTRPBF

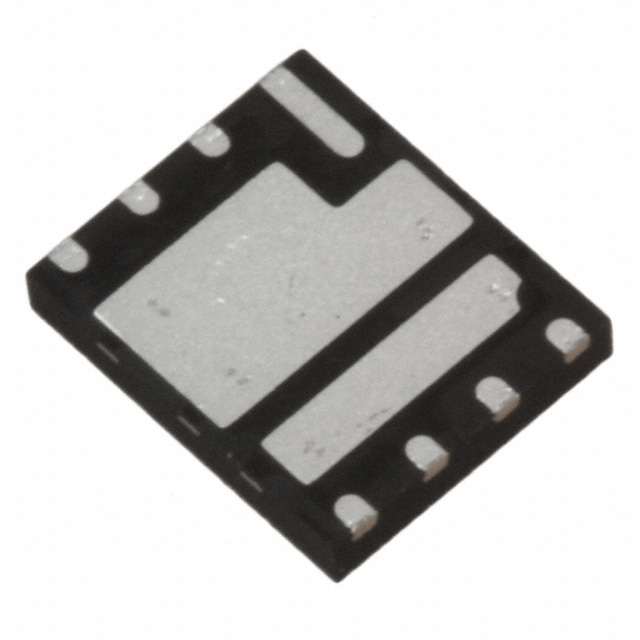

Images are for reference only
Manufacturer
Manufacturer No
IRFH4257DTRPBF
Availability
In Stock
Package
8-PowerVDFN
Packaging
Bulk
Description
MOSFET 2N-CH 25V 25A PQFN
Detailed Description
Mosfet Array 25V 25A 25W, 28W Surface Mount Dual PQFN (5x4)
Datasheet
Payment
Delivery
Series
HEXFET®
Packaging
Bulk
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Power - Max
25W, 28W
Manufacturer
International Rectifier
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
8-PowerVDFN
Vgs(th) (Max) @ Id
2.1V @ 35µA
Base Product Number
IRFH4257
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
3.4mOhm @ 25A, 10V
Supplier Device Package
Dual PQFN (5x4)
Gate Charge (Qg) (Max) @ Vgs
15nC @ 4.5V
Drain to Source Voltage (Vdss)
25V
Input Capacitance (Ciss) (Max) @ Vds
1321pF @ 13V
Current - Continuous Drain (Id) @ 25°C
25A
| Attribute | Value |
|---|---|
| Series | HEXFET® |
| Packaging | Bulk |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Power - Max | 25W, 28W |
| Manufacturer | International Rectifier |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Vgs(th) (Max) @ Id | 2.1V @ 35µA |
| Base Product Number | IRFH4257 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 25A, 10V |
| Supplier Device Package | Dual PQFN (5x4) |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1321pF @ 13V |
| Current - Continuous Drain (Id) @ 25°C | 25A |
