Integrated Power Designs 1011501

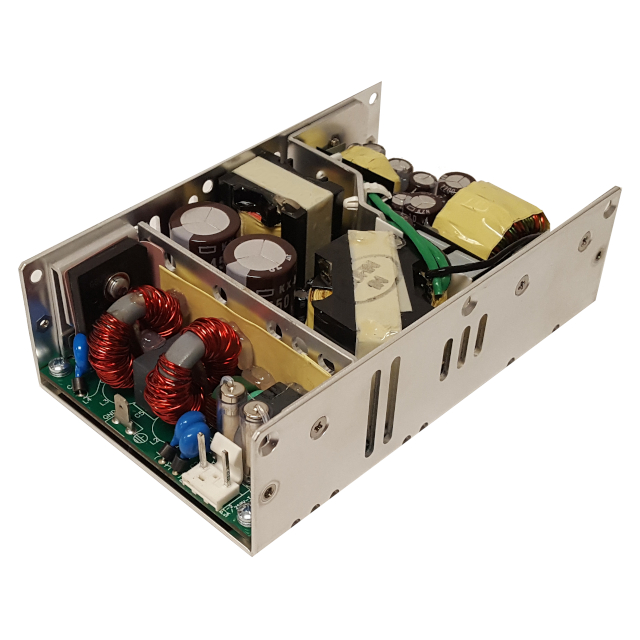

Images are for reference only
Manufacturer
Manufacturer No
1011501
Availability
In Stock
Packaging
Box
Description
AC/DC CONVERTER 5V 24V -24V 200W
Detailed Description
Open Frame AC DC Converters 3 Output 5V 24V -24V 85 ~ 264 VAC Input
Payment
Delivery
Mfr
Integrated Power Designs
Type
Open Frame
Series
GRN-200 (200W)
Features
Adjustable Output, Remote Sense, Universal Input
Packaging
Box
Efficiency
89%
Applications
ITE (Commercial), Medical
Mounting Type
Chassis Mount
Power (Watts)
200W
Approval Agency
CE, cURus, TUV, UKCA
Standard Number
60601-1; 62368-1
Voltage - Input
85 ~ 264 VAC
Size / Dimension
5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm)
Number of Outputs
3
Current - Output 1
30 A
Current - Output 2
1.5 A
Current - Output 3
1.5 A
Voltage - Output 1
5V
Voltage - Output 2
24V
Voltage - Output 3
-24V
Voltage - Output 4
-
Voltage - Output 5
-
Voltage - Output 6
-
Minimum Load Required
No
Operating Temperature
-20°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | Integrated Power Designs |
| Type | Open Frame |
| Series | GRN-200 (200W) |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Packaging | Box |
| Efficiency | 89% |
| Applications | ITE (Commercial), Medical |
| Mounting Type | Chassis Mount |
| Power (Watts) | 200W |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
| Voltage - Input | 85 ~ 264 VAC |
| Size / Dimension | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
| Number of Outputs | 3 |
| Current - Output 1 | 30 A |
| Current - Output 2 | 1.5 A |
| Current - Output 3 | 1.5 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | -24V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Minimum Load Required | No |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
