Step1: Product
Integrated Power Designs 1010616CH

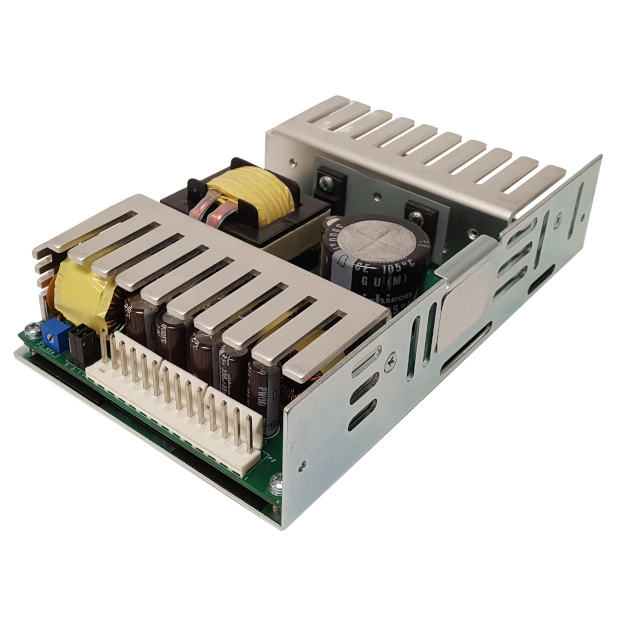

Images are for reference only
Manufacturer
Manufacturer No
1010616CH
Availability
In Stock
Packaging
Box
Description
AC/DC CNVRTR 24V 10V 6V -6V 150W
Detailed Description
Chassis AC DC Converters 4 Output 24V 10V 6V -6V 85 ~ 264 VAC Input
Datasheet
Payment
Delivery
Mfr
Integrated Power Designs
Type
Chassis
Series
REL-150 (150W)
Features
Adjustable Output, Remote Sense, Universal Input
Packaging
Box
Efficiency
82%
Applications
Industrial, ITE (Commercial), Laboratory, Medical
Mounting Type
Chassis Mount
Power (Watts)
150W
Approval Agency
CE, cURus, TUV, UKCA
Standard Number
60601-1; 62368-1
Voltage - Input
85 ~ 264 VAC
Size / Dimension
6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm)
Number of Outputs
4
Current - Output 1
2.3 A
Current - Output 2
1 A
Current - Output 3
1.6 A
Current - Output 4
310 mA
Voltage - Output 1
24V
Voltage - Output 2
10V
Voltage - Output 3
6V
Voltage - Output 4
-6V
Voltage - Output 5
-
Voltage - Output 6
-
Base Product Number
1010616
Operating Temperature
0°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | Integrated Power Designs |
| Type | Chassis |
| Series | REL-150 (150W) |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Packaging | Box |
| Efficiency | 82% |
| Applications | Industrial, ITE (Commercial), Laboratory, Medical |
| Mounting Type | Chassis Mount |
| Power (Watts) | 150W |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
| Voltage - Input | 85 ~ 264 VAC |
| Size / Dimension | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) |
| Number of Outputs | 4 |
| Current - Output 1 | 2.3 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 1.6 A |
| Current - Output 4 | 310 mA |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 10V |
| Voltage - Output 3 | 6V |
| Voltage - Output 4 | -6V |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Base Product Number | 1010616 |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
