Step1: Product
INPAQ Technology Co., Ltd TVL0201015VAA0DG

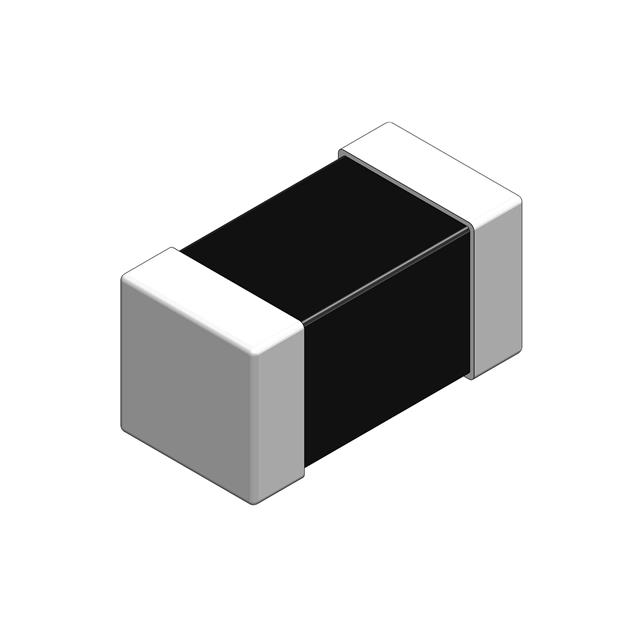

Images are for reference only
Manufacturer
Manufacturer No
TVL0201015VAA0DG
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5VWM 11.5VC 0201
Detailed Description
11.5V (Typ) Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 0201
Datasheet
Payment
Delivery
Mfr
INPAQ Technology Co., Ltd
Type
Zener
Series
TVL0201
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
USB, VGA
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
90W
Operating Temperature
-
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
5pF @ 1MHz
Supplier Device Package
0201
Voltage - Breakdown (Min)
7V
Voltage - Clamping (Max) @ Ipp
11.5V (Typ)
Voltage - Reverse Standoff (Typ)
5V
Current - Peak Pulse (10/1000µs)
6A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | INPAQ Technology Co., Ltd |
| Type | Zener |
| Series | TVL0201 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | USB, VGA |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | 90W |
| Operating Temperature | - |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 5pF @ 1MHz |
| Supplier Device Package | 0201 |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 11.5V (Typ) |
| Voltage - Reverse Standoff (Typ) | 5V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
