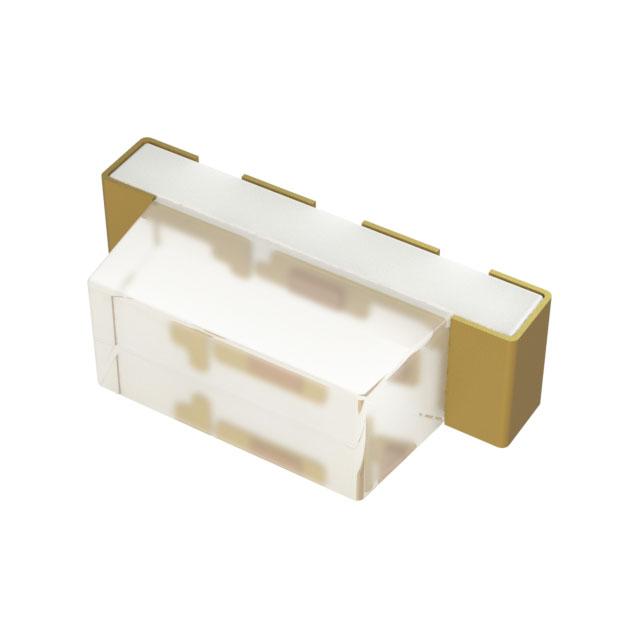

Inolux IN-S63TBS5R5G5B
Images are for reference only
Manufacturer
Manufacturer No
IN-S63TBS5R5G5B
Quantity
5,159
Availability
In Stock
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB CLEAR 0603 SMD R/A
Detailed Description
Red, Green, Blue (RGB) 625nm Red, 530nm Green, 473nm Blue LED Indication - Discrete 2.2V Red, 3V Green, 3V Blue 0603 (1608 Metric)
Datasheet
Payment
Delivery
Mfr
Inolux
Color
Red, Green, Blue (RGB)
Series
-
Features
-
Lens Size
1.20mm x 0.50mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
-
Lens Style
Rectangle with Flat Top
Height (Max)
0.60mm
Configuration
Common Anode
Mounting Type
Surface Mount, Right Angle
Viewing Angle
120°
Current - Test
5mA Red, 5mA Green, 5mA Blue
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.80mm W
Lens Transparency
Clear
Wavelength - Peak
622nm Red, 527nm Green, 470nm Blue
Millicandela Rating
30mcd Red, 230mcd Green, 45mcd Blue
Wavelength - Dominant
625nm Red, 530nm Green, 473nm Blue
Supplier Device Package
0603
Voltage - Forward (Vf) (Typ)
2.2V Red, 3V Green, 3V Blue
| Attribute | Value |
|---|---|
| Mfr | Inolux |
| Color | Red, Green, Blue (RGB) |
| Series | - |
| Features | - |
| Lens Size | 1.20mm x 0.50mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | - |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 0.60mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 120° |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 622nm Red, 527nm Green, 470nm Blue |
| Millicandela Rating | 30mcd Red, 230mcd Green, 45mcd Blue |
| Wavelength - Dominant | 625nm Red, 530nm Green, 473nm Blue |
| Supplier Device Package | 0603 |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3V Green, 3V Blue |
