Step1: Product
Infineon Technologies TTW3C145N16LOF

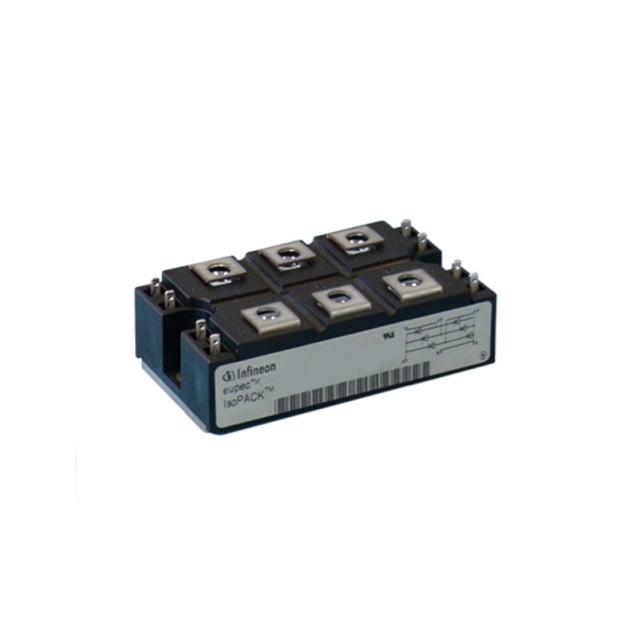

Images are for reference only
Manufacturer
Manufacturer No
TTW3C145N16LOF
Package
Module
Packaging
Bulk
Description
SCR MODULE 1.4KV 120A MODULE
Detailed Description
SCR Module 1.4 kV 120 A Bridge, 3-Phase - All SCRs Chassis Mount Module
Datasheet
Payment
Delivery
Series
-
Packaging
Bulk
Structure
Bridge, 3-Phase - All SCRs
Manufacturer
Infineon Technologies
Mounting Type
Chassis Mount
Package / Case
Module
Base Product Number
TTW3C145
Voltage - Off State
1.4 kV
Operating Temperature
125°C (TJ)
Number of SCRs, Diodes
6 SCRs
Current - Hold (Ih) (Max)
200 mA
Current - Gate Trigger (Igt) (Max)
150 mA
Voltage - Gate Trigger (Vgt) (Max)
2.5 V
Current - On State (It (RMS)) (Max)
120 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
12500A
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Bulk |
| Structure | Bridge, 3-Phase - All SCRs |
| Manufacturer | Infineon Technologies |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Base Product Number | TTW3C145 |
| Voltage - Off State | 1.4 kV |
| Operating Temperature | 125°C (TJ) |
| Number of SCRs, Diodes | 6 SCRs |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 120 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 12500A |
