Step1: Product

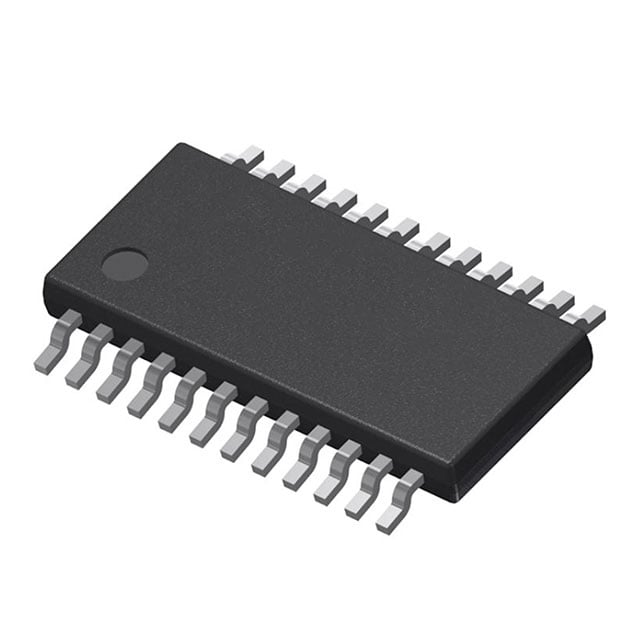

Infineon Technologies TLE94106ESXUMA1
Images are for reference only
Manufacturer
Manufacturer No
TLE94106ESXUMA1
Quantity
360
Availability
In Stock
Package
24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC HALF BRIDGE DRIVER 2A 24TSDSO
Detailed Description
Half Bridge (6) Driver DC Motors, General Purpose Power MOSFET PG-TSDSO-24
Datasheet
Payment
Delivery
Series
-
Features
-
Interface
SPI
Load Type
Inductive
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Power MOSFET
Applications
DC Motors, General Purpose
Manufacturer
Infineon Technologies
Rds On (Typ)
850mOhm LS, 850mOhm HS
Mounting Type
Surface Mount
Package / Case
24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Voltage - Load
5.5V ~ 18V
Fault Protection
Current Limiting, Over Temperature, Short Circuit, UVLO
Voltage - Supply
3V ~ 5.5V
Base Product Number
TLE94106
Output Configuration
Half Bridge (6)
Current - Peak Output
-
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
PG-TSDSO-24
Current - Output / Channel
2A
| Attribute | Value |
|---|---|
| Series | - |
| Features | - |
| Interface | SPI |
| Load Type | Inductive |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Power MOSFET |
| Applications | DC Motors, General Purpose |
| Manufacturer | Infineon Technologies |
| Rds On (Typ) | 850mOhm LS, 850mOhm HS |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Voltage - Load | 5.5V ~ 18V |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Voltage - Supply | 3V ~ 5.5V |
| Base Product Number | TLE94106 |
| Output Configuration | Half Bridge (6) |
| Current - Peak Output | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | PG-TSDSO-24 |
| Current - Output / Channel | 2A |
