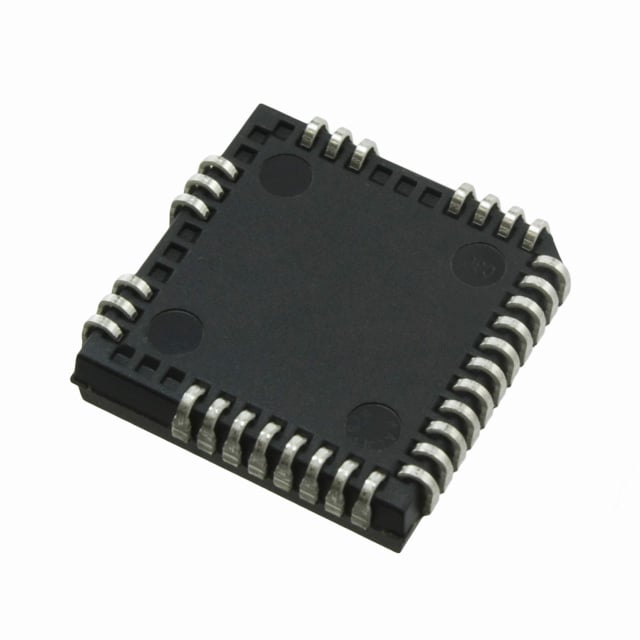

Infineon Technologies IR2132JTRPBF
Images are for reference only
Manufacturer
Manufacturer No
IR2132JTRPBF
Quantity
10
Availability
In Stock
Package
44-LCC (J-Lead), 32 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC GATE DRVR HALF-BRIDGE 44PLCC
Detailed Description
Half-Bridge Gate Driver IC Inverting 44-PLCC, 32 Leads (16.58x16.58)
Datasheet
Payment
Delivery
Series
-
Gate Type
IGBT, MOSFET (N-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Inverting
Channel Type
3-Phase
Manufacturer
Infineon Technologies
Mounting Type
Surface Mount
Package / Case
44-LCC (J-Lead), 32 Leads
Voltage - Supply
10V ~ 20V
Number of Drivers
6
Base Product Number
IR2132
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 150°C (TJ)
Rise / Fall Time (Typ)
80ns, 35ns
Supplier Device Package
44-PLCC, 32 Leads (16.58x16.58)
Logic Voltage - VIL, VIH
0.8V, 2.2V
High Side Voltage - Max (Bootstrap)
600 V
Current - Peak Output (Source, Sink)
250mA, 500mA
| Attribute | Value |
|---|---|
| Series | - |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Inverting |
| Channel Type | 3-Phase |
| Manufacturer | Infineon Technologies |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads |
| Voltage - Supply | 10V ~ 20V |
| Number of Drivers | 6 |
| Base Product Number | IR2132 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rise / Fall Time (Typ) | 80ns, 35ns |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
