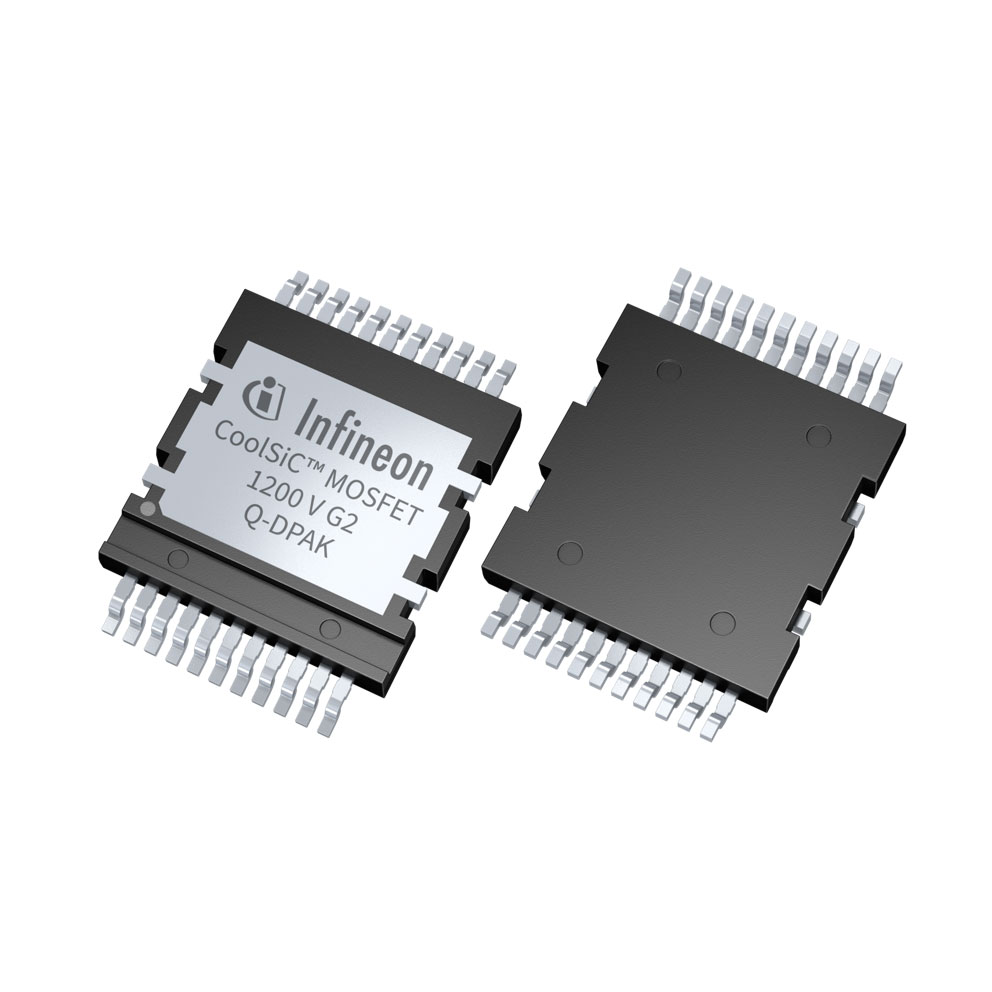

Infineon Technologies IMCQ120R078M2HXTMA1
Images are for reference only
Manufacturer
Manufacturer No
IMCQ120R078M2HXTMA1
Quantity
30
Availability
In Stock
Package
22-PowerBSOP Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SICFET N-CH 1200V 31A 22PWRBSOP
Detailed Description
N-Channel 1200 V 31A (Tc) 176W (Tc) Surface Mount PG-HDSOP-22-3
Datasheet
Payment
Delivery
Mfr
Infineon Technologies
Grade
-
Series
CoolSiC™ G2
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
+23V, -7V
Technology
SiCFET (Silicon Carbide)
FET Feature
-
Mounting Type
Surface Mount
Qualification
-
Package / Case
22-PowerBSOP Module
Vgs(th) (Max) @ Id
5.1V @ 2.8mA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
78.1mOhm @ 8.9A, 18V
Power Dissipation (Max)
176W (Tc)
Supplier Device Package
PG-HDSOP-22-3
Gate Charge (Qg) (Max) @ Vgs
23.2 nC @ 18 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
880 pF @ 800 V
Drive Voltage (Max Rds On, Min Rds On)
15V, 18V
Current - Continuous Drain (Id) @ 25°C
31A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Grade | - |
| Series | CoolSiC™ G2 |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | +23V, -7V |
| Technology | SiCFET (Silicon Carbide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 22-PowerBSOP Module |
| Vgs(th) (Max) @ Id | 5.1V @ 2.8mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 78.1mOhm @ 8.9A, 18V |
| Power Dissipation (Max) | 176W (Tc) |
| Supplier Device Package | PG-HDSOP-22-3 |
| Gate Charge (Qg) (Max) @ Vgs | 23.2 nC @ 18 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 880 pF @ 800 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
