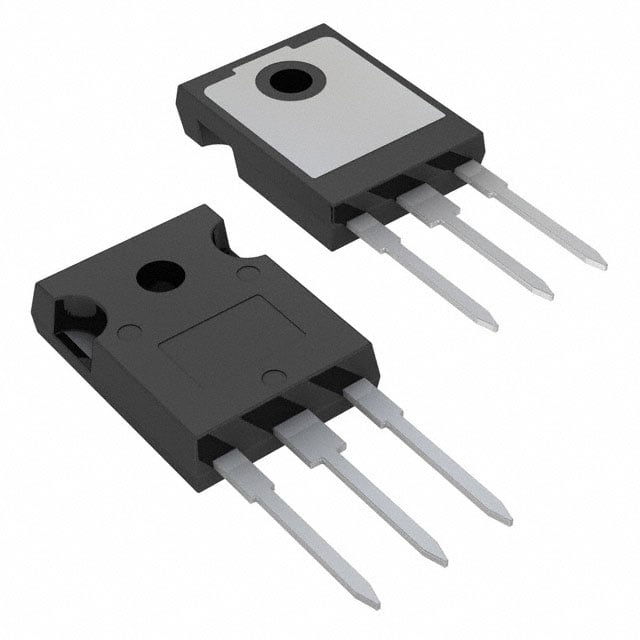

Infineon Technologies IKW15N120H3FKSA1
Images are for reference only
Manufacturer
Manufacturer No
IKW15N120H3FKSA1
Date Code
18+
Quantity
200
Availability
In Stock
Package
TO-247-3
Packaging
Tube
Description
IGBT TRENCH FS 1200V 30A TO247-3
Detailed Description
IGBT Trench Field Stop 1200 V 30 A 217 W Through Hole PG-TO247-3-1
Datasheet
Payment
Delivery
Series
TRENCHSTOP™
IGBT Type
Trench Field Stop
Packaging
Tube
Input Type
Standard
Gate Charge
75 nC
Power - Max
217 W
Manufacturer
Infineon Technologies
Mounting Type
Through Hole
Package / Case
TO-247-3
Test Condition
600V, 15A, 35Ohm, 15V
Switching Energy
1.55mJ
Base Product Number
IKW15N120
Td (on/off) @ 25°C
21ns/260ns
Operating Temperature
-40°C ~ 175°C (TJ)
Supplier Device Package
PG-TO247-3-1
Vce(on) (Max) @ Vge, Ic
2.4V @ 15V, 15A
Reverse Recovery Time (trr)
260 ns
Current - Collector (Ic) (Max)
30 A
Current - Collector Pulsed (Icm)
60 A
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Series | TRENCHSTOP™ |
| IGBT Type | Trench Field Stop |
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 75 nC |
| Power - Max | 217 W |
| Manufacturer | Infineon Technologies |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Test Condition | 600V, 15A, 35Ohm, 15V |
| Switching Energy | 1.55mJ |
| Base Product Number | IKW15N120 |
| Td (on/off) @ 25°C | 21ns/260ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | PG-TO247-3-1 |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 15A |
| Reverse Recovery Time (trr) | 260 ns |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
