Step1: Product

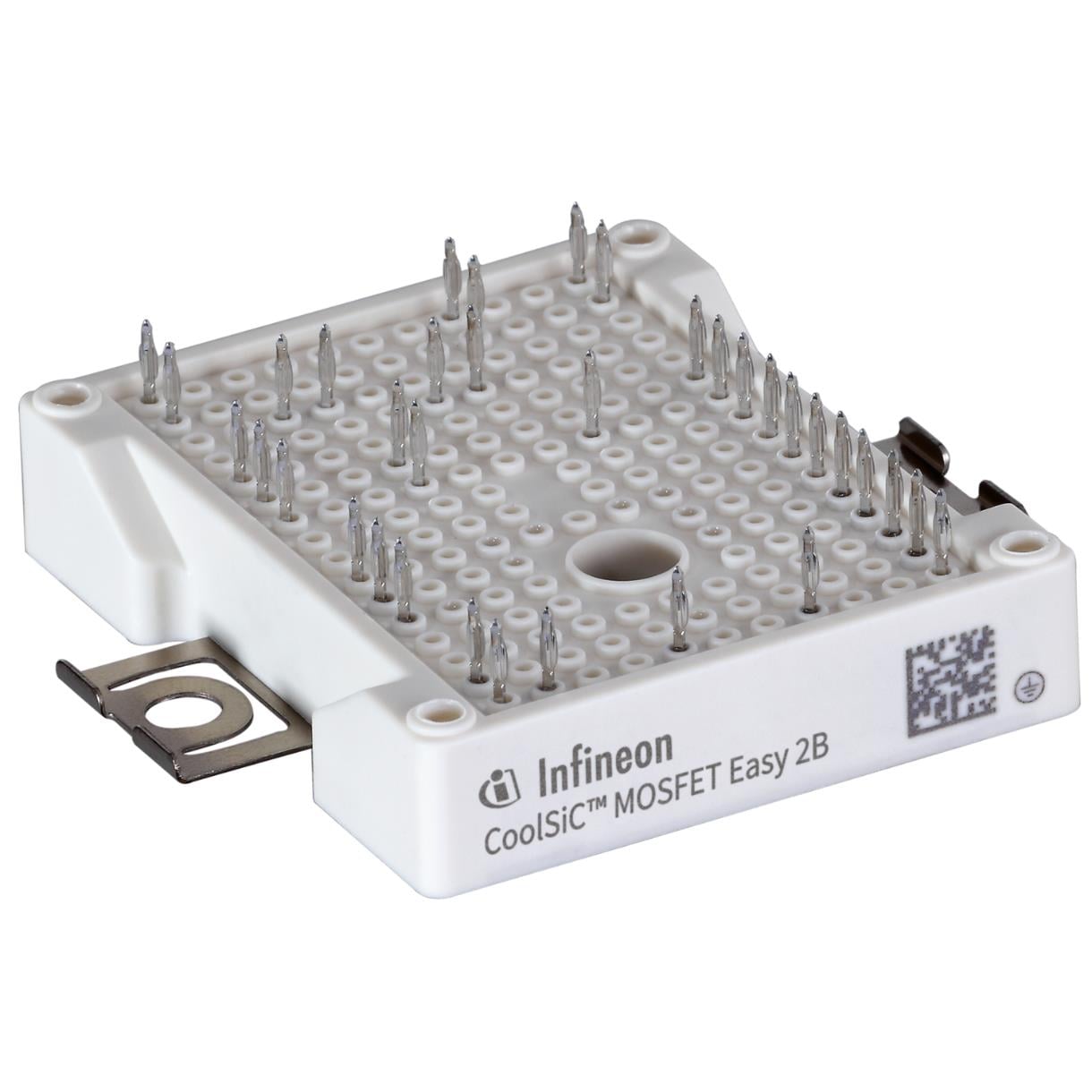

Infineon Technologies FF4MR12W2M1HB70BPSA1
Images are for reference only
Manufacturer
Manufacturer No
FF4MR12W2M1HB70BPSA1
Package
Module
Packaging
Tray
Description
LOW POWER EASY
Detailed Description
Mosfet Array 1200V (1.2kV) 200A Chassis Mount
Datasheet
Payment
Delivery
Grade
-
Series
CoolSiC™
Packaging
Tray
Technology
Silicon Carbide (SiC)
FET Feature
-
Power - Max
-
Manufacturer
Infineon Technologies
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Chassis Mount
Qualification
-
Package / Case
Module
Vgs(th) (Max) @ Id
5.15V @ 80mA
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
4mOhm @ 200A, 18V
Supplier Device Package
-
Gate Charge (Qg) (Max) @ Vgs
594nC @ 18V
Drain to Source Voltage (Vdss)
1200V (1.2kV)
Input Capacitance (Ciss) (Max) @ Vds
17600pF @ 800V
Current - Continuous Drain (Id) @ 25°C
200A
| Attribute | Value |
|---|---|
| Grade | - |
| Series | CoolSiC™ |
| Packaging | Tray |
| Technology | Silicon Carbide (SiC) |
| FET Feature | - |
| Power - Max | - |
| Manufacturer | Infineon Technologies |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 5.15V @ 80mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 200A, 18V |
| Supplier Device Package | - |
| Gate Charge (Qg) (Max) @ Vgs | 594nC @ 18V |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 17600pF @ 800V |
| Current - Continuous Drain (Id) @ 25°C | 200A |
