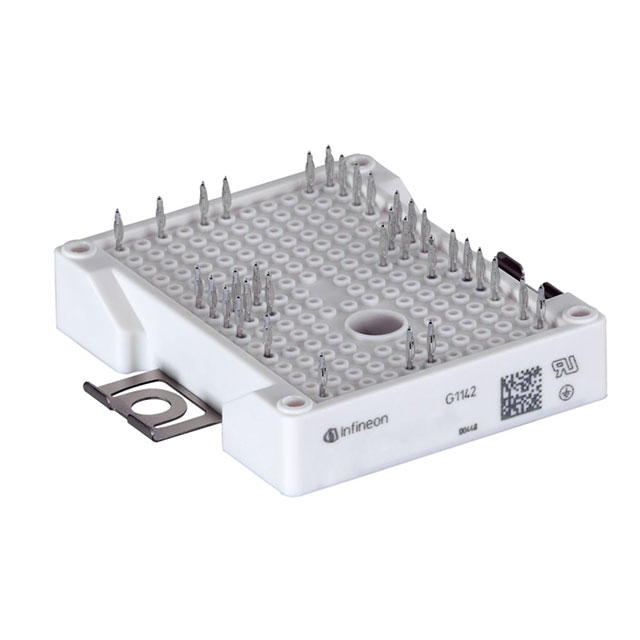

Infineon Technologies DF200R07W2H3B77BPSA1
Images are for reference only
Manufacturer
Manufacturer No
DF200R07W2H3B77BPSA1
Availability
In Stock
Package
Module
Packaging
Tray
Description
IGBT MODULE 650V 70A AG-EASY2B
Detailed Description
IGBT Module Trench Field Stop Three Level Inverter 650 V 70 A Chassis Mount AG-EASY2B
Datasheet
Payment
Delivery
Input
Standard
Series
EasyPACK™
IGBT Type
Trench Field Stop
Packaging
Tray
Manufacturer
Infineon Technologies
Configuration
Three Level Inverter
Mounting Type
Chassis Mount
NTC Thermistor
Yes
Package / Case
Module
Base Product Number
DF200R07
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
AG-EASY2B
Vce(on) (Max) @ Vge, Ic
2V @ 15V, 50A
Current - Collector (Ic) (Max)
70 A
Input Capacitance (Cies) @ Vce
2.95 nF @ 650 V
Current - Collector Cutoff (Max)
21 µA
Voltage - Collector Emitter Breakdown (Max)
650 V
| Attribute | Value |
|---|---|
| Input | Standard |
| Series | EasyPACK™ |
| IGBT Type | Trench Field Stop |
| Packaging | Tray |
| Manufacturer | Infineon Technologies |
| Configuration | Three Level Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Base Product Number | DF200R07 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | AG-EASY2B |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 50A |
| Current - Collector (Ic) (Max) | 70 A |
| Input Capacitance (Cies) @ Vce | 2.95 nF @ 650 V |
| Current - Collector Cutoff (Max) | 21 µA |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
