Step1: Product

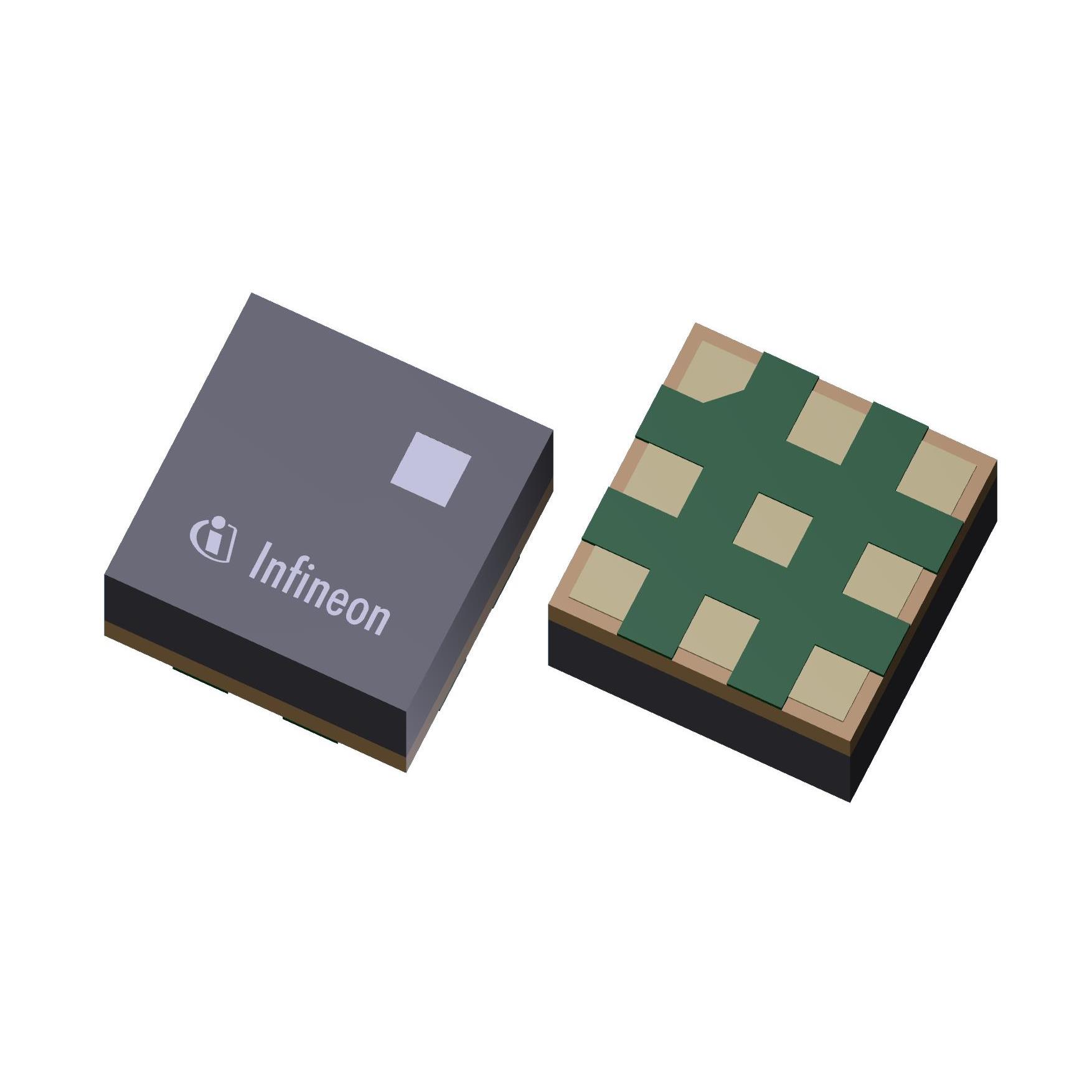

Infineon Technologies BGS14M8U9E6327XUSA1
Images are for reference only
Manufacturer
Manufacturer No
BGS14M8U9E6327XUSA1
Date Code
25+
Quantity
1,000
Availability
In Stock
Package
9-UFLGA
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC RF SWITCH SP4T HIGH PWR
Detailed Description
RF Switch IC 4G/5G, Cellular SP4T 50Ohm PG-ULGA-9-1
Datasheet
Payment
Delivery
IIP3
-
P1dB
-
Grade
-
Series
-
Circuit
SP4T
RF Type
4G/5G, Cellular
Features
DC Blocked
Topology
Reflective
Impedance
50Ohm
Isolation
22dB
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
Infineon Technologies
Mounting Type
Surface Mount
Qualification
-
Insertion Loss
0.52dB
Package / Case
9-UFLGA
Test Frequency
5.925GHz ~ 7.125GHz
Frequency Range
7.125GHz
Voltage - Supply
1.1V ~ 1.3V, 1.65V ~ 1.95V
Base Product Number
BGS14
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
PG-ULGA-9-1
| Attribute | Value |
|---|---|
| IIP3 | - |
| P1dB | - |
| Grade | - |
| Series | - |
| Circuit | SP4T |
| RF Type | 4G/5G, Cellular |
| Features | DC Blocked |
| Topology | Reflective |
| Impedance | 50Ohm |
| Isolation | 22dB |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | Infineon Technologies |
| Mounting Type | Surface Mount |
| Qualification | - |
| Insertion Loss | 0.52dB |
| Package / Case | 9-UFLGA |
| Test Frequency | 5.925GHz ~ 7.125GHz |
| Frequency Range | 7.125GHz |
| Voltage - Supply | 1.1V ~ 1.3V, 1.65V ~ 1.95V |
| Base Product Number | BGS14 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | PG-ULGA-9-1 |
