Step1: Product

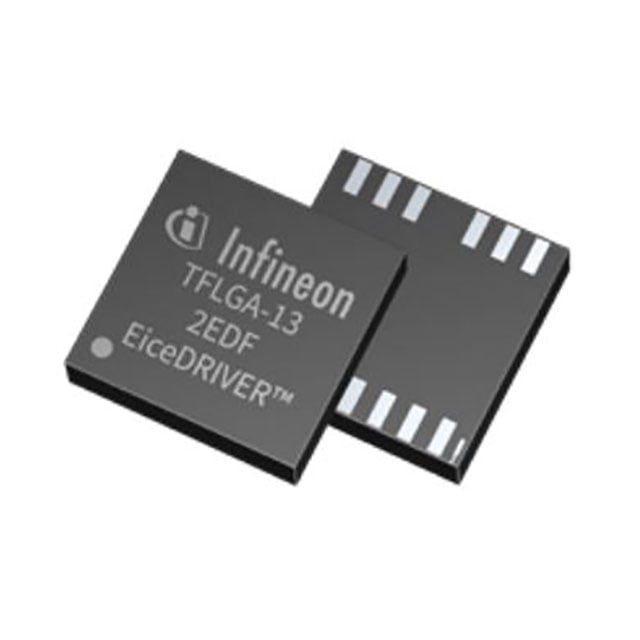

Infineon Technologies 2EDB8259KXUMA1
Images are for reference only
Manufacturer
Manufacturer No
2EDB8259KXUMA1
Quantity
199
Availability
In Stock
Package
13-LGA
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DGTL ISO 2.5KV 2CH GT DVR 13LGA
Detailed Description
5A, 9A Gate Driver Magnetic Coupling 2500Vrms 2 Channel 13-LGA (5x5)
Datasheet
Payment
Delivery
Mfr
Infineon Technologies
Grade
-
Series
EiceDRIVER™
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Magnetic Coupling
Mounting Type
Surface Mount
Qualification
-
Package / Case
13-LGA
Approval Agency
UL
Number of Channels
2
Voltage - Isolation
2500Vrms
Current - Peak Output
5A, 9A
Operating Temperature
-
Rise / Fall Time (Typ)
-
Supplier Device Package
13-LGA (5x5)
Voltage - Output Supply
-
Current - Output High, Low
9A, 5A
Pulse Width Distortion (Max)
-
Voltage - Forward (Vf) (Typ)
-
Propagation Delay tpLH / tpHL (Max)
38ns, 38ns
Common Mode Transient Immunity (Min)
150V/ns
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Grade | - |
| Series | EiceDRIVER™ |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Magnetic Coupling |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 13-LGA |
| Approval Agency | UL |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Current - Peak Output | 5A, 9A |
| Operating Temperature | - |
| Rise / Fall Time (Typ) | - |
| Supplier Device Package | 13-LGA (5x5) |
| Voltage - Output Supply | - |
| Current - Output High, Low | 9A, 5A |
| Pulse Width Distortion (Max) | - |
| Voltage - Forward (Vf) (Typ) | - |
| Propagation Delay tpLH / tpHL (Max) | 38ns, 38ns |
| Common Mode Transient Immunity (Min) | 150V/ns |
