Step1: Product

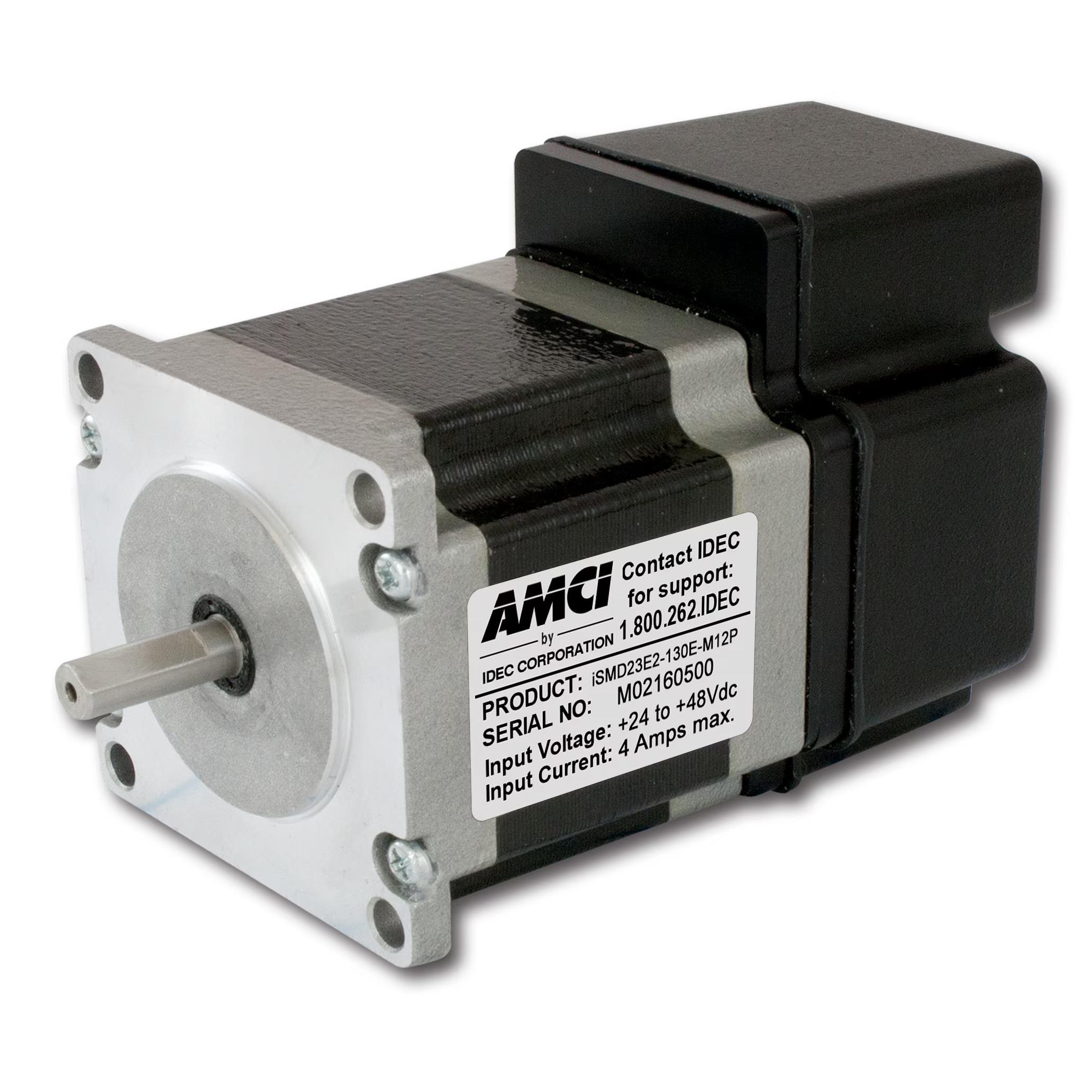

IDEC ISMD23E2-130A-M12
Images are for reference only
Manufacturer
Manufacturer No
ISMD23E2-130A-M12
Packaging
Bulk
Description
STEPPER MOTOR+DRIVE+CONTROLLER
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 23 200.0 Step 3.4 A 24 ~ 48VDC
Datasheet
Payment
Delivery
Mfr
IDEC
Type
Hybrid
Series
ISMD23E
Weight
-
Accuracy
-
Features
Integrated Controller, Flatted Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
1.8°
Rotor Inertia
-
Approval Agency
-
NEMA Frame Size
23
Voltage - Rated
24 ~ 48VDC
Diameter - Shaft
0.250" (6.35mm)
Size / Dimension
Square - 2.250" x 2.250" (57.15mm x 57.15mm)
Termination Style
Connector
Steps per Revolution
200.0
Current Rating (Amps)
3.4 A
Mounting Hole Spacing
1.856" (47.14mm)
Operating Temperature
-20°C ~ 50°C
Length - Shaft and Bearing
0.810" (20.57mm)
Torque - Holding (oz-in / mNm)
130 / 918
| Attribute | Value |
|---|---|
| Mfr | IDEC |
| Type | Hybrid |
| Series | ISMD23E |
| Weight | - |
| Accuracy | - |
| Features | Integrated Controller, Flatted Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Rotor Inertia | - |
| Approval Agency | - |
| NEMA Frame Size | 23 |
| Voltage - Rated | 24 ~ 48VDC |
| Diameter - Shaft | 0.250" (6.35mm) |
| Size / Dimension | Square - 2.250" x 2.250" (57.15mm x 57.15mm) |
| Termination Style | Connector |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 3.4 A |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Operating Temperature | -20°C ~ 50°C |
| Length - Shaft and Bearing | 0.810" (20.57mm) |
| Torque - Holding (oz-in / mNm) | 130 / 918 |
