Step1: Product

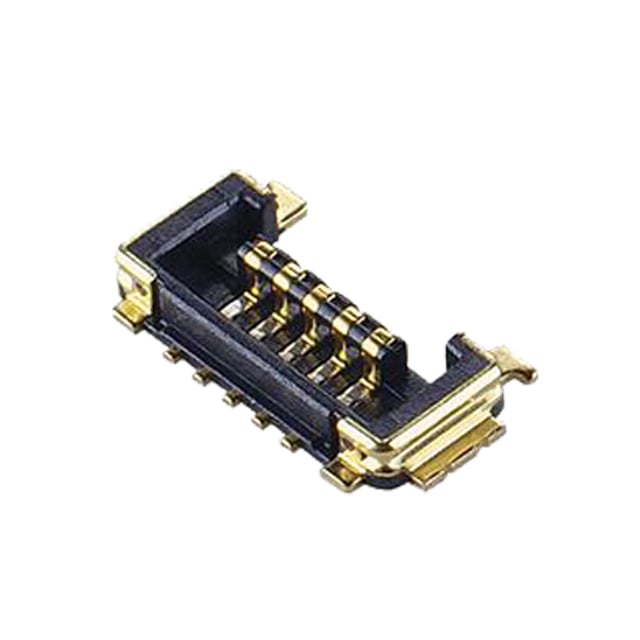

I-PEX 20854-010E-02
Images are for reference only
Manufacturer
Manufacturer No
20854-010E-02
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CABLINE-UY RECEPTACLE 10P
Detailed Description
10 Position Receptacle Connector 0.014" (0.35mm) Surface Mount, Right Angle Gold
Datasheet
Payment
Delivery
Mfr
I-PEX
Style
Board to Cable/Wire
Series
CABLINE®-UY
Features
Shielded, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Applications
General Purpose, Telecommunications
Contact Type
Outer Shroud Contact
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.014" (0.35mm)
Voltage Rating
60V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.020" (0.52mm)
Ingress Protection
-
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
10
Row Spacing - Mating
-
Contact Finish - Post
Gold
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 85°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
1.25µin (0.032µm)
Contact Finish Thickness - Mating
1.97µin (0.050µm)
| Attribute | Value |
|---|---|
| Mfr | I-PEX |
| Style | Board to Cable/Wire |
| Series | CABLINE®-UY |
| Features | Shielded, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact Type | Outer Shroud Contact |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.014" (0.35mm) |
| Voltage Rating | 60V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.020" (0.52mm) |
| Ingress Protection | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 10 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 85°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
