Step1: Product

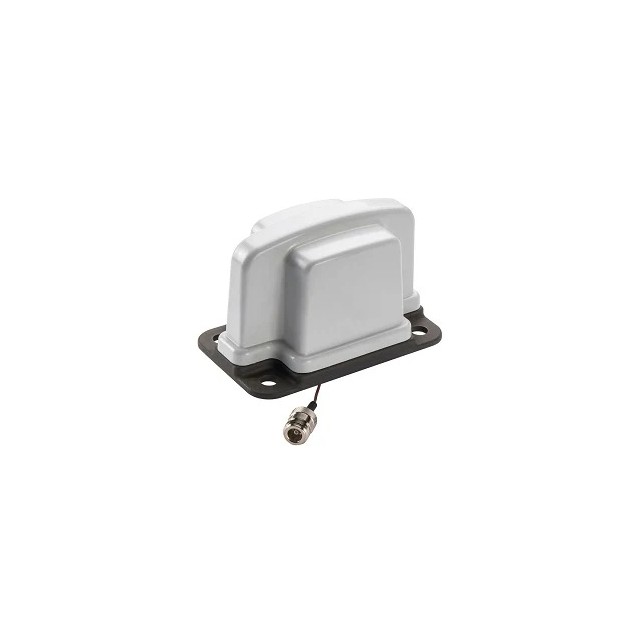

Huber+Suhner, Inc. 87010022
Images are for reference only
Manufacturer
Manufacturer No
87010022
Availability
In Stock
Packaging
Bulk
Description
87010022
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi Module N Type Female (2) Chassis Mount
Datasheet
Payment
Delivery
Gain
5dBi, 6dBi, 28dBi, 7.5dBi, 7dBi, 6.5dBi, 7.5dBi
VSWR
1.5, 2
Series
-
Features
LNA
Packaging
Bulk
Return Loss
-
Termination
N Type Female (2)
Antenna Type
Module
Applications
Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi
Height (Max)
3.661" (93.00mm)
Manufacturer
Huber+Suhner, Inc.
Mounting Type
Chassis Mount
Frequency Group
Wide Band
Frequency Range
694MHz ~ 960MHz, 960MHz ~ 1.62GHz, 1.559GHz ~ 2.2GHz, 2.2GHz ~ 2.7GHz, 2.7GHz ~ 3.3GHz, 3.3GHz ~ 4.9GHz, 4.9GHz ~ 6.425GHz
Number of Bands
7
Ingress Protection
IP66
RF Family/Standard
Cellular, Navigation, WiFi
Frequency (Center/Band)
827MHz, 1.58GHz, 1.589GHz, 2.45GHz, 3GHz, 4.1GHz, 5.662GHz
| Attribute | Value |
|---|---|
| Gain | 5dBi, 6dBi, 28dBi, 7.5dBi, 7dBi, 6.5dBi, 7.5dBi |
| VSWR | 1.5, 2 |
| Series | - |
| Features | LNA |
| Packaging | Bulk |
| Return Loss | - |
| Termination | N Type Female (2) |
| Antenna Type | Module |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
| Height (Max) | 3.661" (93.00mm) |
| Manufacturer | Huber+Suhner, Inc. |
| Mounting Type | Chassis Mount |
| Frequency Group | Wide Band |
| Frequency Range | 694MHz ~ 960MHz, 960MHz ~ 1.62GHz, 1.559GHz ~ 2.2GHz, 2.2GHz ~ 2.7GHz, 2.7GHz ~ 3.3GHz, 3.3GHz ~ 4.9GHz, 4.9GHz ~ 6.425GHz |
| Number of Bands | 7 |
| Ingress Protection | IP66 |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency (Center/Band) | 827MHz, 1.58GHz, 1.589GHz, 2.45GHz, 3GHz, 4.1GHz, 5.662GHz |
