Step1: Product

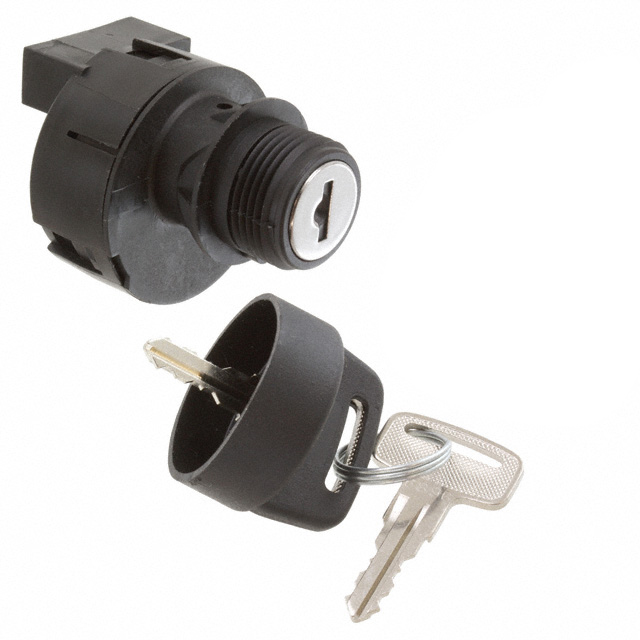

Honeywell Sensing and Productivity Solutions 89165-01
Images are for reference only
Manufacturer
Manufacturer No
89165-01
Packaging
Bulk
Description
SWITCH KEYLOCK 3POS SPDT 20A 12V
Detailed Description
Keylock Switch 3 Position SPDT 20A (DC) AC 12 VDC Panel Mount
Datasheet
Payment
Delivery
Series
-
Circuit
SPDT
Features
-
Packaging
Bulk
Manufacturer
Honeywell Sensing and Productivity Solutions
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
45°
Contact Finish
Tin
Contact Timing
Not Specified
Electrical Life
25,000 Cycles
Mechanical Life
25,000 Cycles
Switch Function
Off-On-Mom
Contact Material
Brass
Termination Style
Connector
Base Product Number
89165
Depth Behind Flange
43.43mm
Number of Positions
3
Voltage Rating - DC
12 V
Current Rating (Amps)
20A (DC)
Operating Temperature
-40°C ~ 85°C
Key Removable Positions
Left
Panel Cutout Dimensions
Circular - 22.35mm Dia
| Attribute | Value |
|---|---|
| Series | - |
| Circuit | SPDT |
| Features | - |
| Packaging | Bulk |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 45° |
| Contact Finish | Tin |
| Contact Timing | Not Specified |
| Electrical Life | 25,000 Cycles |
| Mechanical Life | 25,000 Cycles |
| Switch Function | Off-On-Mom |
| Contact Material | Brass |
| Termination Style | Connector |
| Base Product Number | 89165 |
| Depth Behind Flange | 43.43mm |
| Number of Positions | 3 |
| Voltage Rating - DC | 12 V |
| Current Rating (Amps) | 20A (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Key Removable Positions | Left |
| Panel Cutout Dimensions | Circular - 22.35mm Dia |
