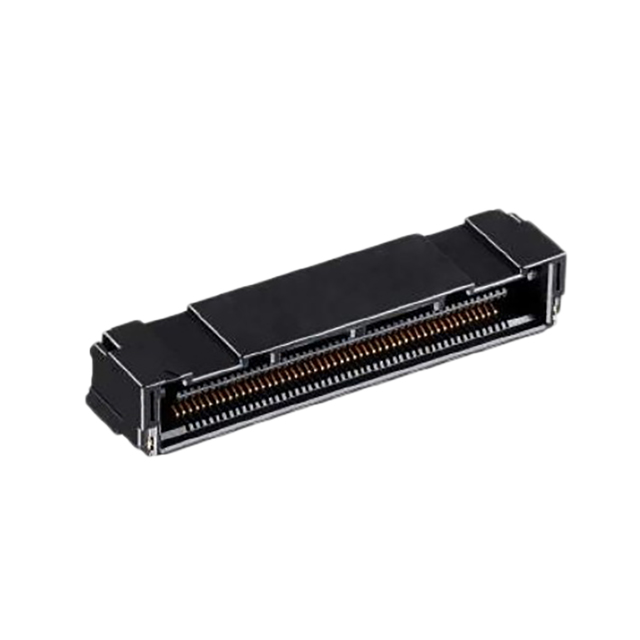

Hirose Electric Co Ltd TF70-50S-0.5SH(800)
Images are for reference only
Manufacturer
Manufacturer No
TF70-50S-0.5SH(800)
Quantity
53
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RECEPTACLE 50POS 0.5MM PITCH
Detailed Description
50 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
TF70
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Housing Color
Black
Mating Cycles
-
Mounting Type
Surface Mount, Right Angle
Actuator Color
-
Cable End Type
Tabbed, Tapered
Contact Finish
-
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
-
Contact Material
-
Housing Material
Polybutylene Terephthalate (PBT)
Actuator Material
-
FFC, FCB Thickness
0.30mm
Height Above Board
0.222" (5.65mm)
Number of Positions
50
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 105°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
-
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | TF70 |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Color | Black |
| Mating Cycles | - |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | - |
| Cable End Type | Tabbed, Tapered |
| Contact Finish | - |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | - |
| Contact Material | - |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Actuator Material | - |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.222" (5.65mm) |
| Number of Positions | 50 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
