Step1: Product

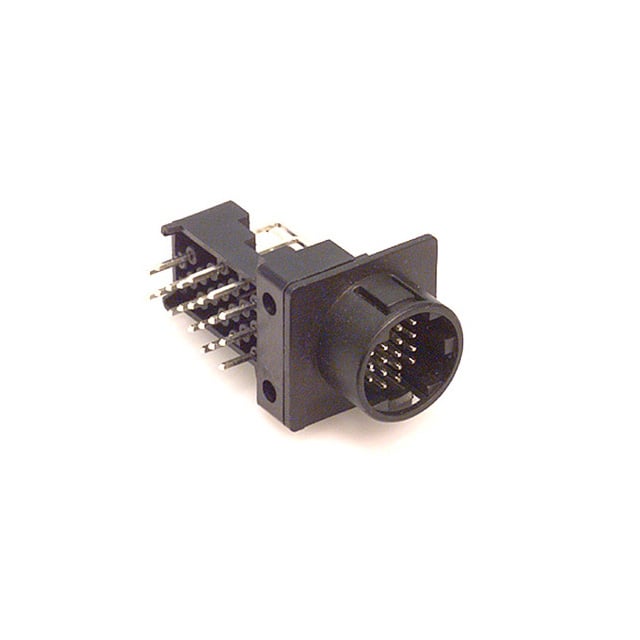

Hirose Electric Co Ltd RP13A-12RC-20PB
Images are for reference only
Manufacturer
Manufacturer No
RP13A-12RC-20PB
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN RCPT MALE 20P SILVER SOLDER
Detailed Description
20 Position Circular Connector Receptacle, Male Pins Solder
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Color
Black
Series
RP13A
Features
-
Packaging
Tray
Shielding
-
Orientation
Keyed
Termination
Solder
Applications
-
Shell Finish
-
Cable Opening
-
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Male Pins
Fastening Type
Push-Pull
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
30VAC, 42VDC
Insert Material
Polybutylene Terephthalate (PBT)
Shell Size, MIL
-
Contact Material
Brass
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
-
Base Product Number
RP13A
Number of Positions
20
Shell Size - Insert
12
Current Rating (Amps)
2A
Operating Temperature
-10°C ~ 60°C
Contact Finish - Mating
Silver
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | RP13A |
| Features | - |
| Packaging | Tray |
| Shielding | - |
| Orientation | Keyed |
| Termination | Solder |
| Applications | - |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Push-Pull |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 30VAC, 42VDC |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | - |
| Base Product Number | RP13A |
| Number of Positions | 20 |
| Shell Size - Insert | 12 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -10°C ~ 60°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
