Step1: Product
Hirose Electric Co Ltd MS-180-HRMJ-F6

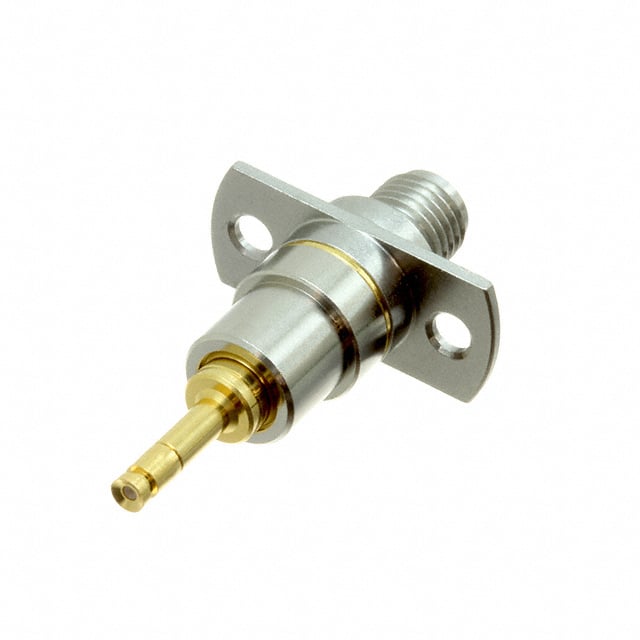

Images are for reference only
Manufacturer
Manufacturer No
MS-180-HRMJ-F6
Availability
In Stock
Packaging
Bag
Description
COAX ADAPT SMA TO COAX SWITCH
Detailed Description
Adapter Coaxial Connector Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Style
Straight
Series
MS-180
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold, Passivated
Adapter Type
Plug to Jack
Body Material
Beryllium Copper, Stainless Steel
Center Gender
Female to Male
Mating Cycles
-
Mounting Type
Panel Mount
Adapter Series
SMA to Coaxial Switch
Fastening Type
Push-Pull, Threaded
Insertion Loss
0.70dB
Conversion Type
Between Series
Frequency - Max
6 GHz
Mounting Feature
Flange
Ingress Protection
-
Base Product Number
MS-180
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMA Jack, Female Socket
Convert From (Adapter End)
Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Straight |
| Series | MS-180 |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold, Passivated |
| Adapter Type | Plug to Jack |
| Body Material | Beryllium Copper, Stainless Steel |
| Center Gender | Female to Male |
| Mating Cycles | - |
| Mounting Type | Panel Mount |
| Adapter Series | SMA to Coaxial Switch |
| Fastening Type | Push-Pull, Threaded |
| Insertion Loss | 0.70dB |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Base Product Number | MS-180 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin |
