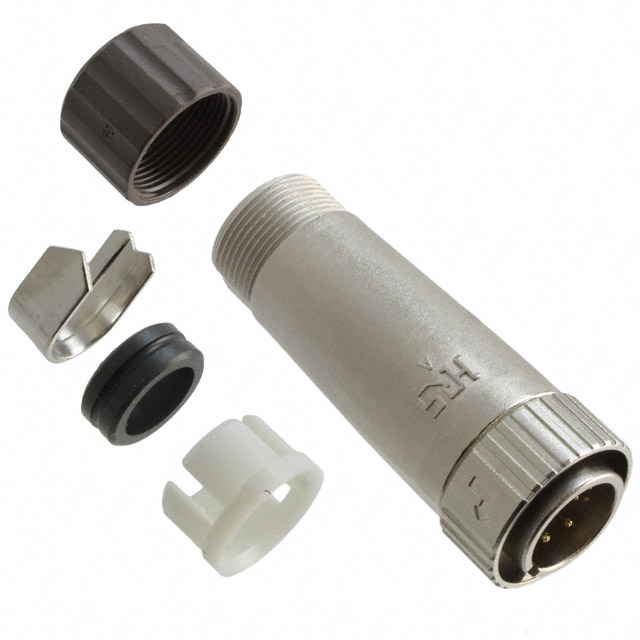

Hirose Electric Co Ltd LF13WBP-20P
Images are for reference only
Manufacturer
Manufacturer No
LF13WBP-20P
Quantity
1
Availability
In Stock
Packaging
Tray
Description
CONN PLUG MALE 20P GOLD SLDR CUP
Detailed Description
20 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Color
Brown, Silver
Series
LF
Features
Backshell, Clamp, Coupling Nut, Strain Relief
Packaging
Tray
Shielding
Shielded
Orientation
Keyed
Termination
Solder Cup
Applications
Industrial, Telecommunications
Shell Finish
Nickel
Cable Opening
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Zinc Alloy
Voltage Rating
30VAC, 42VDC
Insert Material
Polyphenylene Sulfide (PPS)
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
LF13WBP
Number of Positions
20
Shell Size - Insert
13
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Zinc Alloy, Nickel
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Brown, Silver |
| Series | LF |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial, Telecommunications |
| Shell Finish | Nickel |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Zinc Alloy |
| Voltage Rating | 30VAC, 42VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | LF13WBP |
| Number of Positions | 20 |
| Shell Size - Insert | 13 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Zinc Alloy, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
