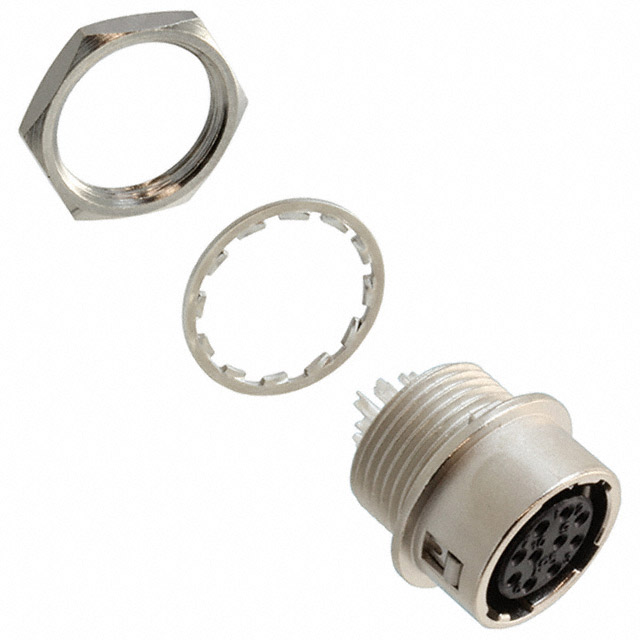

Hirose Electric Co Ltd HR10A-10R-10S(71)
Images are for reference only
Manufacturer
Manufacturer No
HR10A-10R-10S(71)
Quantity
31
Availability
In Stock
Packaging
Bag
Description
CONN RCPT FMALE 10P SOLDER CUP
Detailed Description
10 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Color
Silver
Series
HR10A
Features
-
Packaging
Bag
Shielding
Unshielded
Orientation
Keyed
Termination
Solder Cup
Applications
-
Shell Finish
Nickel
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Pull
Shell Material
Zinc Alloy
Voltage Rating
100VAC, 140VDC
Insert Material
Polyamide (PA), Nylon
Shell Size, MIL
-
Contact Material
Phosphor Bronze
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Metal
Ingress Protection
-
Base Product Number
HR10A
Number of Positions
10
Shell Size - Insert
10
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Silver
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
78.7µin (2.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Silver |
| Series | HR10A |
| Features | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Zinc Alloy |
| Voltage Rating | 100VAC, 140VDC |
| Insert Material | Polyamide (PA), Nylon |
| Shell Size, MIL | - |
| Contact Material | Phosphor Bronze |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Metal |
| Ingress Protection | - |
| Base Product Number | HR10A |
| Number of Positions | 10 |
| Shell Size - Insert | 10 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
