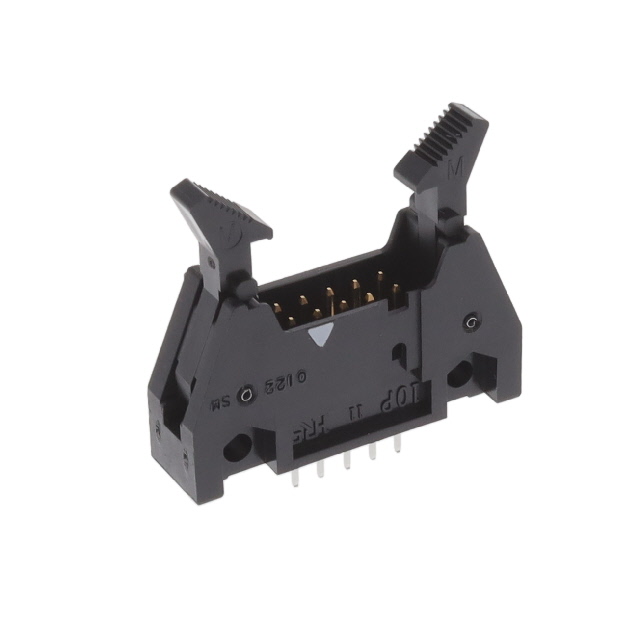

Hirose Electric Co Ltd HIF3BA-10PA-2.54DSA(63)
Images are for reference only
Manufacturer
Manufacturer No
HIF3BA-10PA-2.54DSA(63)
Quantity
8
Availability
In Stock
Packaging
Tray
Description
CONN HEADER VERT 10POS 2.54MM
Detailed Description
Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
HIF3B
Features
Keying Slot
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Lock/Eject Hooks
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
200V
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.701" (17.80mm)
Ingress Protection
-
Base Product Number
HIF3BA
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
10
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-55°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | HIF3B |
| Features | Keying Slot |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Lock/Eject Hooks |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 200V |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.701" (17.80mm) |
| Ingress Protection | - |
| Base Product Number | HIF3BA |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.130" (3.30mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -55°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
