Step1: Product

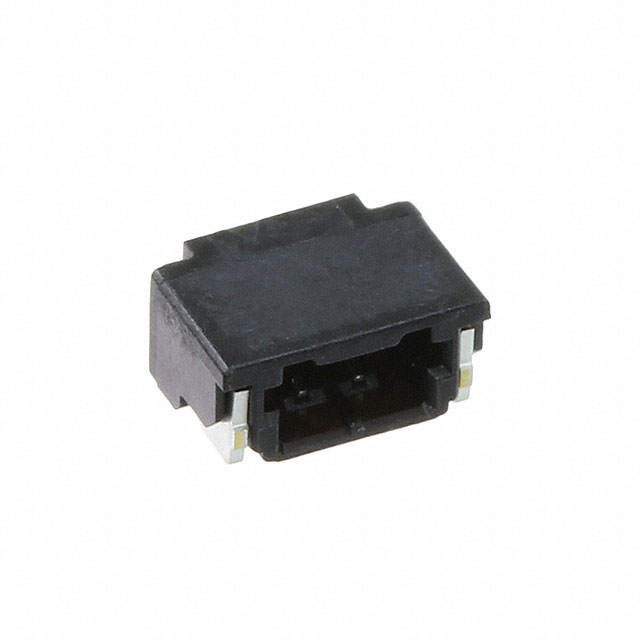

Hirose Electric Co Ltd DF52-2S-0.8H(21)
Images are for reference only
Manufacturer
Manufacturer No
DF52-2S-0.8H(21)
Quantity
10,100
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN SOCKET 2P 0.031 TIN SMD R/A
Detailed Description
2 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
DF52
Features
Glow Wire Compliant, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Applications
-
Contact Type
Non-Gendered
Contact Shape
-
Mounting Type
Surface Mount, Right Angle
Connector Type
Socket
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.031" (0.80mm)
Voltage Rating
100V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.069" (1.75mm)
Ingress Protection
-
Base Product Number
DF52
Insulation Material
Polyamide (PA), Nylon, Halogen Free
Number of Positions
2
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
1.5A
Operating Temperature
-40°C ~ 85°C
Mated Stacking Heights
-
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | DF52 |
| Features | Glow Wire Compliant, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Applications | - |
| Contact Type | Non-Gendered |
| Contact Shape | - |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Socket |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.031" (0.80mm) |
| Voltage Rating | 100V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.069" (1.75mm) |
| Ingress Protection | - |
| Base Product Number | DF52 |
| Insulation Material | Polyamide (PA), Nylon, Halogen Free |
| Number of Positions | 2 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 1.5A |
| Operating Temperature | -40°C ~ 85°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
