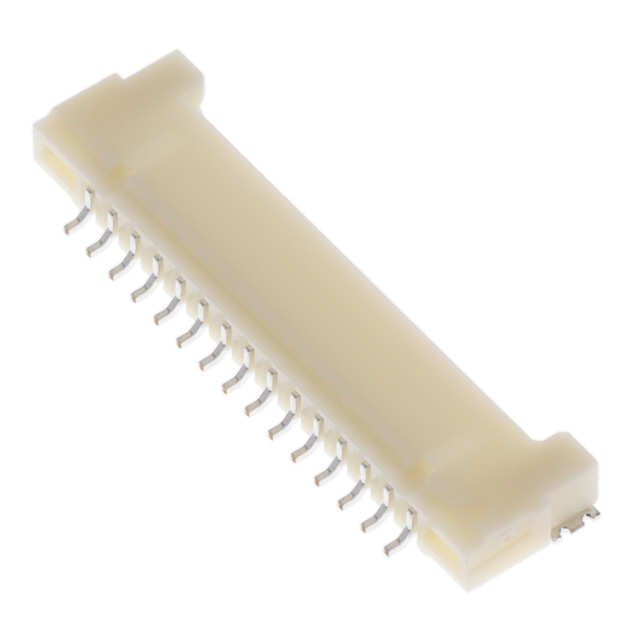

Hirose Electric Co Ltd DF14A-15P-1.25H(35)
Images are for reference only
Manufacturer
Manufacturer No
DF14A-15P-1.25H(35)
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER SMD R/A 15POS 1.25MM
Detailed Description
Connector Header Surface Mount, Right Angle 15 position 0.049" (1.25mm)
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
DF14
Features
Solder Retention
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
150VAC
Contact Material
Brass
Insulation Color
Beige
Insulation Height
0.098" (2.50mm)
Ingress Protection
-
Base Product Number
DF14A
Insulation Material
Polyamide (PA), Nylon
Number of Positions
15
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
1A
Operating Temperature
-35°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
0.086" (2.20mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | DF14 |
| Features | Solder Retention |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 150VAC |
| Contact Material | Brass |
| Insulation Color | Beige |
| Insulation Height | 0.098" (2.50mm) |
| Ingress Protection | - |
| Base Product Number | DF14A |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 15 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A |
| Operating Temperature | -35°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.086" (2.20mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
